Upgrading an Encrypted PDB

An unplug-plug upgrade of an encrypted PDB requires the keystore password of the source and target CDB, and you can do it with AutoUpgrade.

How To

The pluggable database PDB1 is encrypted and is plugged into CDB1, which is Oracle Database 12.2. I want to upgrade the PDB to Oracle Database 19c by plugging it into CDB2.

  1. Ensure that AutoUpgrade is version 22.2 or higher:
    $ java -jar autoupgrade.jar -version
  2. Create your AutoUpgrade config file and set global.keystore as specified in a previous blog post:
    global.autoupg_log_dir=/u01/app/oracle/cfgtoollogs/autoupgrade
global.keystore=/u01/app/oracle/admin/autoupgrade/keystore

upg1.log_dir=/u01/app/oracle/cfgtoollogs/autoupgrade/PDB1
upg1.source_home=/u01/app/oracle/product/12.2.0.1
upg1.target_home=/u01/app/oracle/product/19
upg1.sid=CDB1
upg1.target_cdb=CDB2
upg1.pdbs=PDB1
  3. Analyze:
    $ java -jar autoupgrade.jar -config PDB1.cfg -mode analyze
  4. The summary report warns me that TDE keystore passwords are needed:
    [Stage Name]    PRECHECKS
[Status]        FAILURE
[Start Time]    2022-03-29 07:58:52
[Duration]
[Log Directory] /u01/app/oracle/cfgtoollogs/autoupgrade/PDB1/CDB1/100/prechecks
[Detail]        /u01/app/oracle/cfgtoollogs/autoupgrade/PDB1/CDB1/100/prechecks/cdb1_preupgrade.log
		Check failed for PDB1, manual intervention needed for the below checks
		[TDE_PASSWORDS_REQUIRED]
    There are more details in the preupgrade log file:
    ==============
BEFORE UPGRADE
==============

	REQUIRED ACTIONS
	================
		1.  Perform the specified action ...
		ORACLE_SID                      Action Required
		------------------------------  ------------------------
		CDB1                            Add TDE password
		CDB2                            Add TDE password
  5. Add the TDE keystore passwords into the AutoUpgrade keystore:
    $ java -jar autoupgrade.jar -config PDB1.cfg -load_password

TDE> add CDB1
Enter your secret/Password:
Re-enter your secret/Password:
TDE> add CDB2
Enter your secret/Password:
Re-enter your secret/Password:
  6. Save the passwords into the AutoUpgrade keystore. I choose to create an auto-login keystore:
    TDE> save
Convert the keystore to auto-login [YES|NO] ? YES
TDE> exit
  7. Re-analyze the PDB:
    $ java -jar autoupgrade.jar -config PDB1.cfg -mode analyze
  8. If AutoUpgrade does not report any other problems, start the unplug-plug upgrade. Since I chose to create an AutoUpgrade auto-login keystore, I don’t have to provide the password when AutoUpgrade starts:
    $ java -jar autoupgrade.jar -config PDB1.cfg -mode deploy
  9. That’s it!

What Happens

  • When AutoUpgrade needs to unplug the encrypted PDB into a manifest file, the source CDB will need the TDE keystore password. AutoUpgrade can get it from its keystore. This is the IDENTIFIED BY clause of the ALTER PLUGGABLE DATABASE ... UNPLUG INTO statement.
  • The encryption keys of the PDB go into the manifest file. The database doesn’t want to write the encryption keys in clear text in the manifest file and asks for a passphrase that can encrypt the encryption keys. AutoUpgrade generates a passphrase and stores the passphrase in the AutoUpgrade keystore. This is the ENCRYPT USING clause of the ALTER PLUGGABLE DATABASE ... UNPLUG INTO statement.
  • When the PDB plugs into the target CDB, the target CDB will need the TDE keystore password. This is the IDENTIFIED BY clause of the CREATE PLUGGABLE DATABASE ... USING statement.
  • The database must get the encryption keys of the PDB from the manifest files. The encryption keys are encrypted using a passphrase. The database asks AutoUpgrade about the passphrase which is stored in the AutoUpgrade keystore. This is the DECRYPT USING clause of the CREATE PLUGGABLE DATABASE ... USING statement.

Fallback

AutoUpgrade fallback functionality also works on an encrypted PDB. When it comes to unplug-plug upgrades and fallback capability, it is a requirement that the data files were copied as part of the upgrade process.

In the above example, a fallback using AutoUpgrade would not be possible. Since I did not specify a target_pdb_copy_option the data files were re-used. Other means of falling back to the original state is needed.

Had I specified a target_pdb_copy_option in my config file, a fallback would be possible. In the below example, I am specifying a copy option. file_name_convert=none means that the data files are copied and new OMF names are generated:

upg1.target_pdb_copy_option=file_name_convert=NONE

In this case, I can revert the unplug-plug upgrade and return to the original state using AutoUpgrade. 103 is the job id of the upgrade:

$ java -jar autoupgrade.jar -config PDB1.cfg -restore -jobs 103

Isolated Keystore Mode

In CDBs the default way of storing TDE encryption keys is in a united keystore. The CDB has one keystore and all PDBs store their encryption keys in that one keystore.

With Oracle Database 19.14 a new option became possible: isolated keystore. The CDB still has a keystore that PDBs can use. But you can also configure each individual PDB to use its own keystore.

You can load a password for an isolated keystore using:

TDE> add <oracle_sid> -pdb <pdb_name>

Other Blog Posts in This Series

Upgrading an Encrypted Non-CDB or CDB

Upgrading a non-CDB or an entire CDB is straightforward with AutoUpgrade. There is only one requirement:

  • An auto-login keystore must be present.

Upgrade Non-CDB and CDB

The auto-login keystore enables the database to open the TDE keystore without a DBA manually entering the keystore password. During a database upgrade, the database will restart multiple times. The upgrade process embeds the restarts, and there is no way for a DBA to intervene halfway to enter the TDE keystore password. Hence, it is required to use an auto-login keystore.

You can query the database for the type of the TDE keystore:

SQL> select wallet_type from v$encryption_wallet;

AUTOLOGIN

It must be an AUTOLOGIN keystore or a LOCAL_AUTOLOGIN. I like the local autologin keystore because it adds an additional layer of security.

When a proper keystore is in place, you can start the upgrade.

Keystore Location and WALLET_ROOT

The Oracle Database must know where to find the TDE keystore. It will look in the following locations in the following order:

  • As of Oracle Database 19c, WALLET_ROOT initialization parameter.
  • ENCRYPTION_WALLET_LOCATION sqlnet.ora parameter.
  • $ORACLE_BASE/admin/DB_UNIQUE_NAME/wallet
  • $ORACLE_HOME/admin/DB_UNIQUE_NAME/wallet

Oracle recommends using the parameter WALLET_ROOT when your database is on Oracle Database 19c. The parameter is introduced in Oracle Database 19c, and all other methods have been deprecated.

It is easier to configure the TDE keystore using WALLET_ROOT than sqlnet.ora. AutoUpgrade can implement the changes needed to switch to the WALLET_ROOT parameter as part of an upgrade . I recommend doing that.

TNS_ADMIN

Often, sqlnet.ora defines the TDE keystore configuration. This means that the TNS_ADMIN location is important.

TNS_ADMIN defaults to $ORACLE_HOME/network/admin. But sometimes, it is relocated either via a profile (like .bashrc) or using srvctl setenv database. AutoUpgrade fully supports both methods.

But it does happen from time to time that there are issues with the TNS_ADMIN location. Recently, I saw it at a customer. The customer used a dedicated sqlnet.ora for each database. The parameter ENCRYPTION_WALLET_LOCATION was unique in each of the sqlnet.ora files. They had issues with their profiles and AutoUpgrade picked up the wrong sqlnet.ora. This caused AutoUpgrade to report issues with the TDE keystore during analyze phase.

Luckily, there is functionality in AutoUpgrade to override the TNS_ADMIN location:

You can put them into the config file. AutoUpgrade will set the TNS_ADMIN environment variable before executing any command. That will effectively override any other TNS_ADMIN setting:

upg1.target_tns_admin_dir=/etc/oracle/keystores/DB12

Usually, I would not recommend using these parameters. In most cases, the correct TNS_ADMIN location is set and all is good. Use only when you encounter issues.

Other Blog Posts in This Series

AutoUpgrade and Transparent Data Encryption (TDE)

It is now easier to upgrade and convert your encrypted Oracle Database. The latest version of AutoUpgrade adds much better support for Oracle Databases that are encrypted with Transparent Data Encryption (TDE).

You must ensure that you are using the latest version of AutoUpgrade. You can download it from My Oracle Support AutoUpgrade Tool (Doc ID 2485457.1). At the time of writing, the latest version of AutoUpgrade is 22.2:

$ java -jar autoupgrade.jar -version
build.version 22.2.220324

AutoUpgrade Keystore

Dealing with TDE, also means dealing with sensitive information. AutoUpgrade must adequately protect the TDE keystore passwords. To do so, AutoUpgrade can have its own keystore to store sensitive information, i.e., TDE keystore passwords. Whenever a TDE keystore password is needed, e.g., during an unplug-plug upgrade of an encrypted PDB, it can get the password from the AutoUpgrade keystore.

You need to tell AutoUpgrade where it can create the keystore. You do so in the config file:

global.keystore=/etc/oracle/keystores/autoupgrade/DB12

When you start to use the AutoUpgrade keystore the following files are created in the directory:

$ pwd
/etc/oracle/keystores/autoupgrade/DB12

$ ll
-rw-------. 1 oracle dba 765 Mar 28 14:56 cwallet.sso
-rw-------. 1 oracle dba 720 Mar 28 14:56 ewallet.p12

It is similar to other keystores that Oracle Database use. ewallet.p12 is the keystore, and cwallet.sso is an auto-login keystore used to open the real keystore. You don’t have to create an auto-login keystore.

You should protect the AutoUpgrade keystore files like you protect any other Oracle Database keystore:

  • Apply restrictive file system permissions.
  • Audit access.
  • Back it up.

Using the Keystore

Create your AutoUpgrade config file and specify global.keystore as described above. Start an interactive prompt that allows you to add the necessary passwords:

$ java -jar autoupgrade.jar -config DB12.cfg -load_password

The first time you use the AutoUpgrade keystore, you must provide a password that protects the AutoUpgrade keystore:

Starting AutoUpgrade Password Loader - Type help for available options
Creating new keystore - Password required
Enter password:
Enter password again:
Keystore was successfully created

In the TDE console, the following commands are available:

  • add
  • delete
  • list
  • save
  • help
  • exit

The SID references the databases. If you want to add a TDE password for the database DB12, use the following command:

TDE> add DB12
Enter your secret/Password:
Re-enter your secret/Password:
TDE> add CDB2
Enter your secret/Password:
Re-enter your secret/Password:

If you want to delete the TDE password for DB12:

TDE> delete DB12

Keystore Password is required prior to operation
Enter wallet password:

When you save the passwords into the AutoUpgrade keystore, you must decide whether you want to have an auto-login keystore:

TDE> save
Convert the keystore to auto-login [YES|NO] ?

I recommend using auto-login keystores. If you do not create an AutoUpgrade auto-login keystore, you will be prompted for the AutoUpgrade keystore password when you start AutoUpgrade. If you want to use AutoUpgrade in noconsole mode (-noconsole), then an auto-login keystore is required.

I will show how to upgrade and convert encrypted databases in later blog posts.

Loss of AutoUpgrade Keystore

What happens if your AutoUpgrade keystore is lost? This is fairly simple. You can re-create the keystore and load all passwords into it using the load_password command line option as described above.

Preupgrade Checks

We have added new preupgrade checks to the analyze phase in AutoUpgrade. These checks will help you to provide the needed passwords and ensure your TDE configuration meets certain standards:

  • auto_login_keystore_required
  • keystore_conflict
  • no_keystore_files
  • tde_passwords_required
  • wallet_root
  • tde_in_use
  • oracle_home_keystore

You can read more about these checks in MOS note Database Preupgrade tool check list. (Doc ID 2380601.1).

Further Reading

Other Blog Posts in This Series

Rolling Upgrades of Oracle Database on Exadata Cloud Service

If you want to minimize the downtime needed to upgrade your Oracle Database 19c on Exadata Cloud Service, one of the options is to use rolling upgrades. Our good friends in the Maximum Availability Architecture (MAA) team recently posted a very good MOS note with step-by-step instructions.

Exadata Cloud Database 19c Rolling Upgrade With DBMS_ROLLING (Doc ID 2832235.1)

What Is Rolling Upgrade?

A rolling upgrade uses a standby database called a logical standby database.

A logical standby database is initially created as an identical copy of the primary database, but it later can be altered to have a different structure. The logical standby database is updated by executing SQL statements. The flexibility of a logical standby database lets you upgrade Oracle Database software (patch sets and new Oracle Database releases) and perform other database maintenance in rolling fashion with almost no downtime.

Logical Standby Databases, Data Guard Concepts and Administration 21c

With almost no downtime means the time it takes to perform a Data Guard switchover. Typically, that is a few minutes. If your application is configured properly, the downtime can be hidden from the end-user. The downtime will appear as a brown-out where the session will be waiting for the database to complete the switchover before continuing.

Rodrigo explains how the process works in this video from our webinar How Low Can You Go? Zero Downtime Operations

Pro tip: The process uses a so-called Transient Logical Standby or TLS, so you can find additional information by searching for that term as well.

Can I use rolling upgrade on my database?

Rolling upgrades using DBMS_ROLLING requires the Active Data Guard Option which is included in your ExaCS license.

In addition, there are requirements to the data types in your database and a few other prerequisites. Check the documentation for details.

In this video, Roy explains how to determine the readiness of your Oracle Database. The video is also from our webinar How Low Can You Go? Zero Downtime Operations.

Other Options for Minimizing Downtime During Upgrades

If your database is not capable of performing rolling upgrades, you can still do something to minimize downtime. You can try to tune the upgrade itself or use Oracle GoldenGate. Both options are described in detail in our webinar How Low Can You Go? Zero Downtime Operations. You can flip through the slides or watch the complete recording.

If you decide to go with Oracle GoldenGate, and since your database is in OCI, you can benefit from the OCI GoldenGate service. Now, you may think: GoldenGate, that sounds expensive! But it is not. The new OCI GoldenGate service comes at a completely new price model, which is very attractive for shorter use cases like upgrades and migrations. You don’t pay a license for the source and target CPUs but instead for usage of CPUs on the GoldenGate hub itself. And you only pay by the hour.

Conclusion

Finally, just a kudos to my colleague Sebastian Alasino for putting together a very good, easy-to-follow MOS note.

Here is a demo of rolling upgrades (not on ExaCS – but a lot is identical)

Happy upgrading!

Get Started with Autoupgrade

If you never upgraded a database or it has been a while since you did it, I suggest that you get familiar with AutoUpgrade. Other methods of upgrading still exist, but AutoUpgrade is the only recommended method!

How To

AutoUpgrade is a tool that comes in a single file named autoupgrade.jar. You find it in your Oracle Home in $ORACLE_HOME/rdbms/admin. You should always download the latest version of AutoUpgrade from My Oracle Support and put it into your Oracle Home, thus overwriting the existing file.

AutoUpgrade is fully backward compatible, and a newer version of AutoUpgrade can upgrade databases to a previous version. In this example, AutoUpgrade is version 21.3.211115, but notice the information in build.supported_target_versions:

$ java -jar autoupgrade.jar -version

build.hash 081e3f7
build.version 21.3.211115
build.date 2021/11/15 11:57:54
build.max_target_version 21
build.supported_target_versions 12.2,18,19,21
build.type production

Version 21 of AutoUpgrade can upgrade your database to Oracle Database 21c and previous releases.

Now, you are ready to analyze your Oracle Database for upgrade readiness and eventually upgrade it. This short YouTube video explains the process.

Finally, you can watch a short demo of a database upgrade.

Try It

But the best way to learn is to do it yourself. You can use our Hands-On Lab for this purpose. You can find an overview of the lab and the lab instructions on Mike Dietrich’s blog.

You can run the lab in two ways.

VirtualBox image

The Hands-On Lab comes as a self-contained VirtualBox image that you download and run on your own computer. It requires around 100 GB of disk space and a fairly modern computer. Nothing fancy, but it doesn’t run smoothly on arcane hardware. Get started here.

LiveLabs

You can run the entire lab in just a browser using Oracle LiveLabs. You can do it in our Cloud Free Tier so that it will be completely free. Our workshop on Oracle LiveLabs is called Hitchhiker’s Guide for Upgrading to Oracle Database 19c.

Watch this video and learn how to provision a lab in Oracle LiveLabs.

Guided Tour

If you get stuck in the lab or just want to watch and let Mike Dietrich do all the typing, you can watch this recorded session of the complete hands-on lab.

Further Reading

Once done with the lab, you can start on these additional ressources:

Good luck!

P.S. Remember – it is better to fail in our lab than in production…

Oracle Database 21c Is Here

Last week Oracle released Oracle Database 21c for additional platforms: Linux and Exadata. Other platforms will follow. You should keep an eye out for Release Schedule of Current Database Releases (Doc ID 742060.1) for further information.

Things to Notice

In my part of the Oracle Database, there are things to notice. I want to highlight:

To get all the details, visit the Upgrade and Utilities part of the new features documentation. There are some good examples of how the features can be used.

Behaviour Changes

Read-Only Oracle Home (ROOH) is now the default. Be sure to set the following environment variables to control the location of these directories:

  • ORACLE_BASE_HOME
  • ORACLE_BASE_CONFIG

I like ROOH, but it takes some time to get used to. For instance, network/admin files (tnsnames, sqlnet) and dbs files (pfile, spfile) are now in a new location.

The Pre-Upgrade Information Tool or preupgrade.jar is removed and replaced by AutoUpgrade. A few new parameters have been introduced to make the transition easier.

Innovation Release

Remember, 21c is an innovation release, which means a shorter support window than Long Term Releases such as Oracle Database 19c. If you adopt Innovation Releases, you should be prepared to upgrade to the next database release within one year after the next database release ships.

I would not recommend that you upgrade your production systems to Oracle Database 21c due to the limited support period. Not unless you are prepared to upgrade the database soon again – when support runs out. Oracle Database 19c is the current Long Term Support release. I recommend that for production databases.

Different release types for Oracle Database - innovation vs long term support

To learn more about innovation release and our release model, have a look at our slide deck. We discuss it in the first chapter.

New Features

I want to mention a few new features. They haven’t attracted as much attention as the marque features, but they are still cool.

Expression based init.ora parameters make it possible to base database parameters (init.ora) on calculations made on the system’s configuration. For example, setting the database parameter CPU_COUNT to half the number of CPUs (Windows):

alter system set cpu_count='$NUMBER_OF_PROCESSORS/2';

For more details, check out my video on YouTube.

Placeholders in SQL DDL Statements can improve application security because sensitive information, like passwords, doesn’t need to be hardcoded in SQL DDL. Example: You can make this statement:

CREATE USER :!username IDENTIFIED BY :!password ...

And Oracle Call Interface programs can substitute the placeholders into:

CREATE USER "DANIEL" IDENTIFIED BY "MyS3cr3tP!d" ...

This is similar to data binding but occurs in Oracle Client.

Conclusion

The complete 21c documentation is online, so I suggest that you head on over there and have a look. In the upgrade guide, you can find the list of behavior changes and also deprecated and desupported functionality. And finally, but most interesting perhaps, is Learning Database New Features.

Try it out in Always Free ADB or explore the Oracle LiveLabs.

Upgrade with Less Downtime

You can upgrade your Oracle Database with less downtime. With the release of AutoUpgrade 21.2 we added the fast deploy option. It allows you to run the preupgrade fixups while the database is still online. Only the actual upgrade will now require downtime.

The Usual Upgrade

When you upgrade the usual way, i.e., using AutoUpgrade in deploy mode, then you:

  1. Analyze the database – java -jar autoupgrade.jar -mode analyze This is non-intrusive and doesn’t change anything on the database. You get a report, and you can fix any issue that AutoUpgrade can’t fix for you.
  2. Upgrade the database – java -jar autoupgrade.jar -mode deploy The database is analyzed again. Based on the findings of the analysis, a set of preupgrade fixups are executed. Finally, the database upgrade takes place.

Best practice is to use AutoUpgrade in deploy mode

During step #2, the database is not available – you have downtime. Even though the database was analyzed previously, it will be re-analyzed to catch any new issues. This is the safest approach. From the first analysis (in step #1) to the second analysis (in step #2), potentially new issues can occur.

We talked to a few of our customers who are really trying to reduce the downtime of an upgrade. For them – every second counts and has a significant impact on their business. They asked us to make the upgrade faster.

Fast Deploy Mode

One customer suggested moving the final analysis and preupgrade fixup outside of the downtime window. Shortly before the downtime would start, they would like to run an analysis and the preupgrade fixups. Next, they would wait until the downtime window starts and do only the upgrade.

I must stress; there is a risk that a new issue pops up between the fixups and the upgrade – but this one customer is willing to take the risk. In exchange, they will get upgrades with less downtime.

We call this approach fast deploy. The procedure is:

  1. Analyze the database – java -jar autoupgrade.jar -mode analyze
  2. Run the preupgrade fixups – java -jar autoupgrade.jar -mode fixups
  3. Now downtime starts
  4. Upgrade the database – java -jar autoupgrade.jar -mode upgrade

To reduce downtime use the new fast deploy mode - with increased risk

Fast deploy requires AutoUpgrade 21.2 or newer. The target database release can be any of the target releases already supported by AutoUpgrade, meaning 12.2 or higher.

Here are the details of the feature – from the AutoUpgrade change log:

> This feature enables DBA’s to run the prechecks and prefixups while the database is still online and then run deploy to complete the upgrade. Once the fixups have been run on the source database, DBA can then skip the prechecks and prefixup stages and proceed directly to the phases that follow for example: Database can be online: java -jar autoupgrade.jar -mode fixups -config yourconfig Upgrade time: java -jar autoupgrade.jar -mode upgrade -config yourconfig The -mode upgrade command proceeds directly to the phases that follow the prechecks and prefixups stages during deploy. The main goal of this feature is to reduce database downtime by running the fixups when your database is online and open for business and then skipping the fixups when your database is offline. See Oracle documentation for further details.

Conclusion

If your application is really sensitive to downtime, you can now upgrade with less downtime using fast deploy. It introduces a slight risk that the preupgrade analyze will not detect an issue that will cause troubles later on. You have to choose whether that risk is acceptable to you.

Our recommendation is to use the old approach – AutoUpgrade in deploy mode. Consider only fast deploy if downtime really hurts.

If you are interested in seeing which other things got put into AutoUpgrade 21.2, you can check the change log.

Upgrade Internals – Webinar

Here is a little teaser for our upcoming webinar on Database Upgrade Internals – and so much more on Wednesday 10 February 2021 at 10:00 CET. You can still sign up.

Virtual Classroom Series - Upgrade to Oracle Database 19c

We have a special guest star joining, Frederick Alvarez – one of the masterminds behind AutoUpgrade. In addition, as usual Mike Dietrich will be there, and we have prepared a whole lot of new contents for this webinar. And – if I have to say so myself – it has become quite good and interesting. If you are still not convinced take a look at this!

What Actually Happens During Upgrade

We will go into the upgrade itself, dissect it, and discover what actually happens. Hopefully, it will no longer be a black box to you.

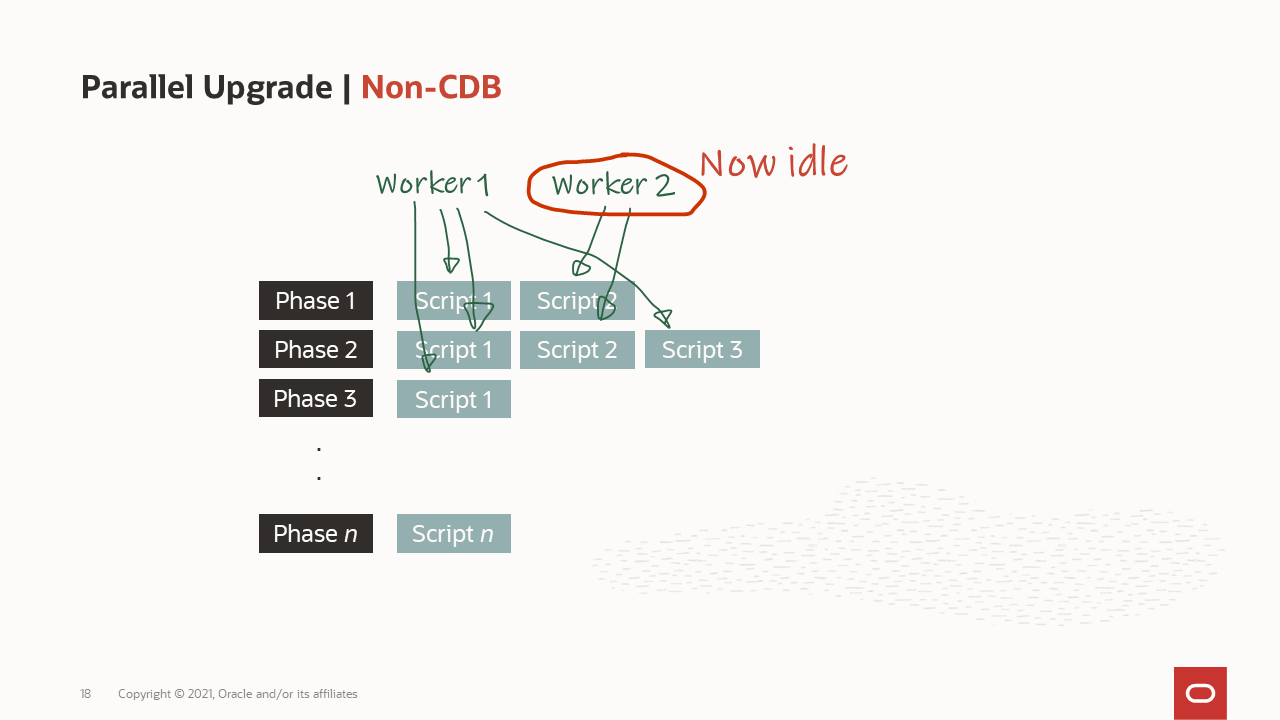

How are the workers processing the upgrade? How are the workers processing the upgrade?

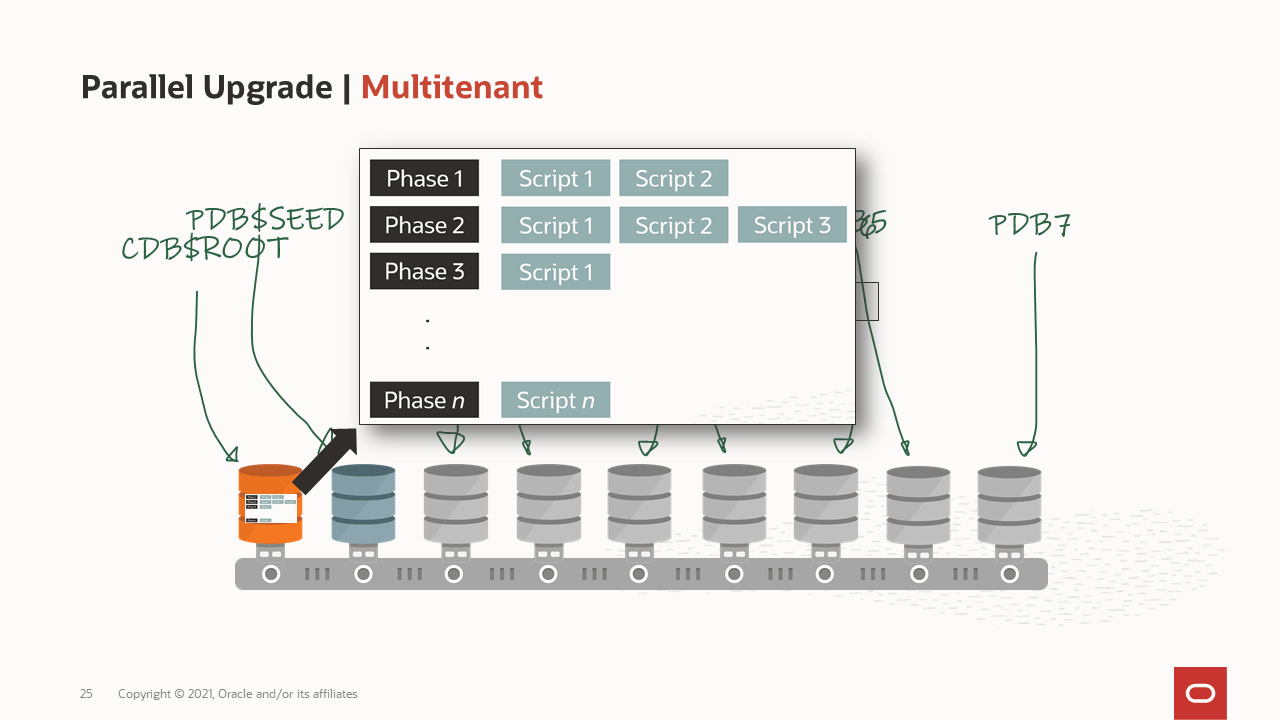

How is a container database upgraded? How is a container database upgraded?

What goes on in the phases of the upgrade? What goes on in the phases of the upgrade?

I Need More Power, Scotty

We will also cover, how you can make your upgrade faster and show what you can achieve.

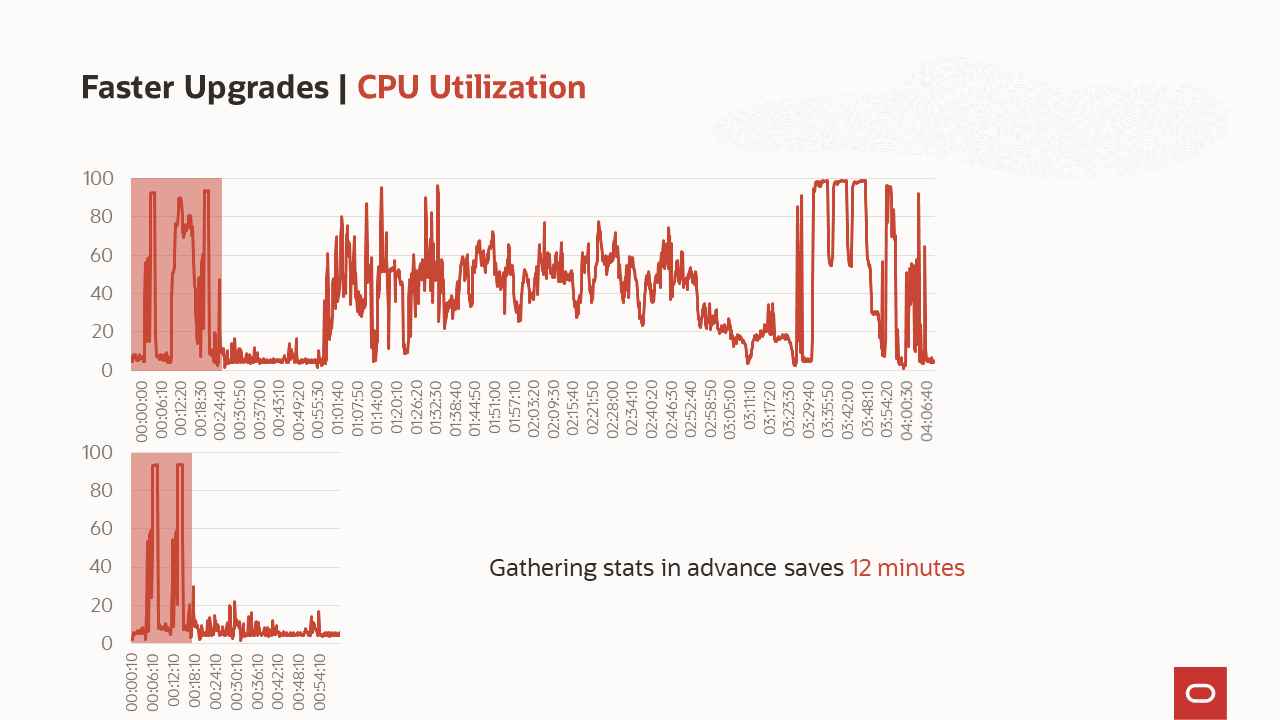

What is the benefit of gathering stats before the upgrade? What is the benefit of gathering stats before the upgrade?

What Can You Achieve With AutoUpgrade

A deep dive into the checks that are executed by AutoUpgrade. A list of some of the comprehensive checks that are executed by AutoUpgrade A list of some of the comprehensive checks that are executed by AutoUpgrade

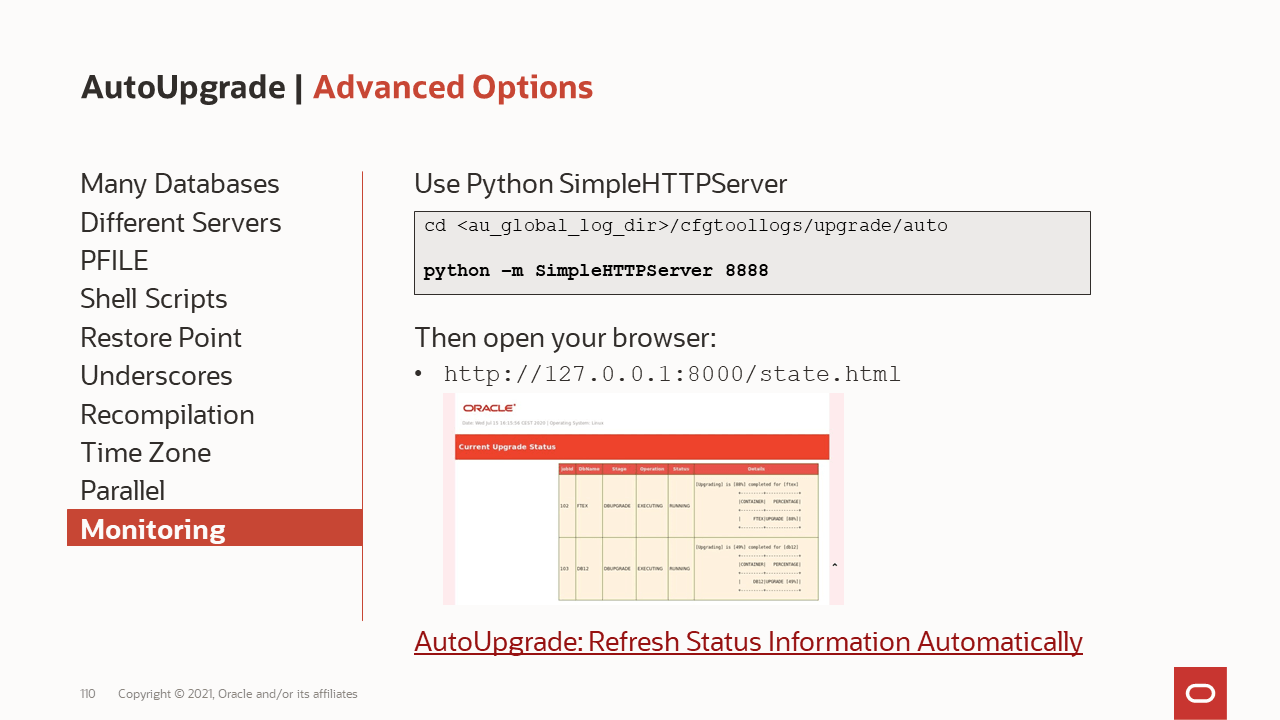

One page monitoring One page monitoring

The Old Releases

For those of you on very old releases, we will discuss how you can upgrade to Oracle Database 19c.

What to consider when doing upgrades from very old releases What to consider when doing upgrades from very old releases

See You

Once the webinar is over we will publish a recording and make the slides available for download.

See you on wednesday!

Control Upgrade Parallelism In AutoUpgrade

Under the hood, AutoUpgrade uses the Parallel Upgrade Utility or catctl.pl to do the database upgrade. The Parallel Upgrade Utility has a long list of options that you can configure. The parallel options being the most notable. In your AutoUpgrade config file you can now specify a subset of options to catctl.pl using the parameter catctl_options.

Now, you should not expect a 10x improvement by adding a ton of CPUs to your upgrade. Mike Dietrich posted a really good article that explains what matters to an upgrade when it comes to performance. But f you want to squeeze out the very last resources on your system during upgrade, or want to fine-tune the distribution of CPUs the resource consumption, you can do it with AutoUpgrade.

How

First, you can find a list of catctl parameters in the documentation.

When you have determined the parameters that you want to use, specify them in your config file either globally (for all upgrades):

global.catctl_options=-N 8

or locally for a specific upgrade:

upg1.catctl_options=-N 8

The above examples will run the upgrade of PDBs using eight parallel processes.

You should have a look in the documentation to know the minimum and maximum values for the settings. At least for the parallel settings it is really good to know.

Non-CDB

Support for this parameter and non-CDB databases was added in 21.1.2. To ensure that the upgrade runs with as many parallel processes as possible:

upg1.catctl_options=-n 8

CDB and PDB

When you upgrade a CDB the following happen:

  • First, CDB$ROOT is upgraded using eight parallel processes.
  • Next, a number of PDBs are upgraded concurrently, starting with PDB$SEED. The total number of parallel processes to use is controlled by the parameter n.
  • Each individual PDB is upgraded using a number of SQL processes as well. This is controlled by the parameter N.

This means that the number of PDBs that are upgraded at the same time is: n / N

What is the best value of n?

  • If you are conservative you set n to CPU_COUNT.
  • If you are bold, you could probably raise it further, because some of the phases in the upgrade runs serially or doesn’t use the full parallel capacity. Try to set n to CPU_COUNT + 10 % and see how loaded your CPUs get. Keep increasing until you find a suitable level.

In the documentation there are some really good examples and explanations of using N and n together.

On a system with CPU_COUNT=48, put the following in your AutoUpgrade config file to run 6 PDB upgrades concurrently using 8 parallel processes:

upg1.catctl_options=-n 48 -N 8

Note, regardless of what you specify, when it comes to CDB$ROOT AutoUpgrade will always run with the maximum number of parallel processes. CDB$ROOT is special and it must be upgraded before any of the other ones can start. Hence, it makes sense to get it completed as fast as possible.

If you are doing an unplug-plug upgrade of a single PDB it could be a good idea to add more parallel processes to that single upgrade. If you want to use 8 parallel processes:

upg1.catctl_options=-N 8

Conclusion

It can be useful to override the default parallel settings during upgrades. You should not expect a 10x performance improvement, but you might squeeze out the very last resources. What is the best setting? It depends. You should go with the defaults, or test it using your own databases.

History

12 April 2021: Added information about support of non-CDB databases as of AutoUpgrade 21.1.2.

AutoUpgrade One-liner

You can use AutoUpgrade to upgrade a database using only a single command line. No config file is needed!

Whenever we talk about AutoUpgrade, we also mention the config file. The file that contains information about what has to be upgraded. A very simple version of such a config file could look like this:

upg1.sid=DB12
upg1.source_home=/u01/app/oracle/product/12.2.0.1
upg1.target_home=/u01/app/oracle/product/19

This is the preferred and recommended way of using AutoUpgrade. But you can actually specify everything on the command line.

Upgrade in One Line

By using the command line option config_values you can now specify the config file entries on the command line. Instead of using the above config file you could execute:

java -jar autoupgrade.jar \
   -config_values "sid=DB12,source_home=/u01/app/oracle/product/12.2.0.1,target_home=/u01/app/oracle/product/19" \
   -mode analyze

Notice how I used config_values to specify the contents of the config file. The prefix that you have to use in the config file (in this case upg1) is not used here (only for global entries, like global.autoupg_log_dir).

If you have several databases to upgrade, you separate them with as asterisk (*):

-config_values "sid=DB1,...,*,sid=DB2,...,*,sid=DB3,..."

Using Environment Variables

A few of the config file entries can be specified as environment variables instead:

Config file entry Environment variable
sid $ORACLE_SID
source_home $ORACLE_HOME
target_home $ORACLE_TARGET_HOME
target_version $ORACLE_TARGET_VERSION

So, you can start AutoUpgrade like this as well:

export ORACLE_SID=DB12
export ORACLE_HOME=/u01/app/oracle/product/12.2.0.1
export ORACLE_TARGET_HOME=/u01/app/oracle/product/19
java -jar autoupgrade.jar -config_values -mode analyze

And it works fine on Windows as well. Just use set instead of export.

What Happens

AutoUpgrade first needs to determine the global logging directory (global.autoupg_log_dir).

  • If you specify the global logging directory it will be used.
  • If you do not specify the global logging directory one of the following will be used:
    • Linux/Unix: /tmp/autoupgrade
    • Windows: C:\Users\name\AppData\Local\Temp\autoupgrade

Next, AutoUpgrade will create a config file using the information supplied either using config_values or from the environment.

From here on AutoUpgrade behaves as usual.

Conclusion

If needed, you can provide all input to AutoUpgrade in one command line. This is useful if you are using AutoUpgrade in scripts or from Ansible or similar orchestration tools.

I would still recommend the use of a config file. It is easier to read and write the options in a nice formatted text file. Further, you avoid the potential trouble of escaping characters on the command line. And, finally, you avoid having a very long an unreadable command line. These arguments are, by the way, the same we use when we recommend using a parameter file (.par) for Data Pump.

Further Reading
