Zero Downtime Migration – Logical Migration and Statistics

If you decided to do a logical migration of your Oracle Database with Zero Downtime Migration (ZDM), here is something important about optimizer statistics. You must manually take care of the optimizer statistics on the target database after the Data Pump import. Either by recreating the statistics or transporting the statistics from the source database.

Background

Whenever I talk about migration of Oracle Database with Data Pump, I always mention that it is best practice to exclude optimizer statistics from the Data Pump export. Here is how you do it:

$ expdp ... exclude=statistics

Why is that recommended? Data Pump is not very good at extracting the optimizer statistics. There is nothing wrong with the statistics when they are imported. But the issue is that it can take a very long time to do the export of statistics.

ZDM and Data Pump

The development team behind ZDM wanted the tool to be easy to use. Also, they wanted ZDM to use all the best practices that come with the various other tools that ZDM uses. When they talked to us about Data Pump, we told them to exclude statistics.

BUT – this also leaves you in a situation where you have a database completely without optimizer statistics. It goes without saying that it is a disaster waiting to happen. You must ensure that optimizer statistics are present on the target database before allowing the users to connect to it.

Regather

One option is to regather optimizer statistics on the target database after the Data Pump import. When the Data Pump import completes, and before you proceed with the switchover, it is time to regather the statistics. Typically, you would start ZDM something like this:

$ zdmcli migrate database .... -pauseafter ZDM_MONITOR_GG_LAG

It will start by performing the initial load of the database with Data Pump. Then it will configure GoldenGate before it pauses – waiting for your signal to complete the migration. At this time, use DBMS_STATS to gather statistics:

SQL> exec DBMS_STATS.GATHER_DATABASE_STATS;

This has some drawbacks:

  • It requires time and resources – which might not be the biggest problem. The source database is still open for business. We haven’t performed the switchover yet.
  • Column usage information (table COL_USAGE$) is not populated, so in some cases, no histograms will be created. This will happen if the database is supposed to automatically determine whether histograms are needed (method_opt includes size auto). In that case, you can merge the column usage information from another database via a database link, which can be a good idea if your application is depending on histograms.
  • The table, schema, or database statistics preferences are not present. It could be degree, method_opt, stale_pct or any other preferences that you can set with DBMS_STATS.SET_TABLE_PREFS (or schema or database-wide preferences). These preferences can be transferred to the new system, which is what I will talk about next.

Transferring Statistics

Another option is to transfer the statistics using DBMS_STATS. We have covered this in detail in a webinar, so I suggest you watch Performance Stability, Tips and Tricks and Underscores for all the details.

In short,

  1. The optimizer statistics in the source database are extracted from the data dictionary and stored in a transportable format in a regular heap table (referred to as a staging table).
  2. Using Data Pump, you move that table to the target database.
  3. Then you put the statistics into the data dictionary of the target database so that optimizer can use them.

Pro tip: You should perform step #1 before you start ZDM and store the staging table in one of the schemas that you are migrating with ZDM. That way, you don’t have to move the table manually. It is moved by ZDM together with the real data.

One thing to be aware of is that the table, schema or database statistics preferences are not transferred when you use e.g. DBMS_STATS.EXPORT_TABLE_STATS. There are dedicated procedures for transferring the statistics preferences:

Conclusion

You must figure out how to move the optimizer statistics into your target database when you use ZDM to perform logical migrations. If not, your target database will be without optimizer statistics which is a disaster waiting to happen.

Appendix

You might now ask. If Data Pump is bad at exporting statistics, but there are already better ways available in the database, why don’t we change the Data Pump code? And you are right – but so far, other things have been prioritized. I would love to see this one day fully embedded in Data Pump.

Other Blog Posts in This Series

Zero Downtime Migration – Physical Online Migration to ExaCS

This will be an easy blog post. To migrate your Oracle Database to Exadata DB System (ExaCS), just follow this procedure from the DBCS blog post. Plus, execute these two commands on the target after the migration:

[root@tgthost]$ dbaascli registerdb prereqs --dbname [db_name] --db_unique_name [db_unique_name]
[root@tgthost]$ dbaascli registerdb begin --dbname [db_name] --db_unique_name [db_unique_name]

More Details, Please

Granted – the above statement is bold and it is almost true. There are a few important details to share. First, have a look at Additional Information for Migrating to Exadata Cloud Service which you find the Release Notes

Target Environment

To get the full benefits of Exadata you should be running RAC databases. Exadata and RAC is a perfect match but it is up to you to decide. If your source database is already a RAC database (or RAC One Node) you must migrate to a RAC database. However, if your source database is a single instance you have to option to either stay single instance or go RAC. If you go RAC, just create the target placeholder database as a RAC database, and everything else will happen automatically.

You must create a placeholder database on the target system. The placeholder database gets overwritten ZDM during the migration but it is initially used by ZDM to get information on how you want to configure your target database in OCI. For example, the migrated database will be placed in the same Oracle Home as the target placeholder database. Also, the architecture is determined this way. In other words, if you create the target placeholder database as a RAC database; then your source database is automatically converted to a RAC database during migration. If you create a single instance placeholder database; you get a single instance database.

Just like any other migration, when creating the placeholder database there are some things you should be aware of. On the OCI webpage you have to:

  • Set Database name to the DB_NAME of the source database.
  • Set Database version to the same as the source database.
  • Ensure the patch level of the Oracle Home match that of the source system – or be higher.
  • Ensure that the Password matches the SYS password of the source database.

When using Zero Downtime Migration (ZDM) to migrate to Exadata DB System (ExaCS) be sure to create the target placeholder database in the correct manner.

You can choose your own DB_UNIQUE_NAME – it should differ from the source database. Select an Oracle Home that has the same or higher patch level than your source database. I recommend to always migrate to the latest Release Update. If necessary, ZDM will automatically invoke datapatch after the switchover. The other parameters don’t matter – the database gets overwritten anyway by ZDM. Also, be aware when using the OCI webpage you get a RAC database. There is no option to change it. But it is after all the perfect match for Exadata anyway.

Now, if you want more advanced options – like creating a single instance database, you can’t use the OCI webpage. You will have to use either dbaaspi or dbaascli. That gives you full control over the options – but they are not as easy to use as the webpage.

It’s A Wrap

I have created a video on YouTube that demos a migration to Exadata DB System.

Speaking of YouTube, I suggest that you subscribe to the Oracle Database Upgrades and Migrations YouTube channel so you never miss anything.

The Exadata Cloud Service is an awesome platform and it is really easy to migrate to it using Zero Downtime Migration. And converting to RAC is even easier.

Other Blog Posts in This Series

Zero Downtime Migration – Physical Online Migration to DBCS

Let me show you how you can migrate an Oracle Database into OCI. My source database is a CDB running on 12.1.0.2. I want to migrate to the same version using the Physical Online method which uses Data Guard.

This procedure can be used to migrate to:

  • VM DB Systems
  • Bare Metal DB Systems
  • Exadata DB System (ExaCS)

If you want to migrate to Exadata Cloud at Customer and Exadata on-prem, you can use a lot from this post, but there are some differences which I will not cover.

Prerequisites

  1. I need a ZDM service host. It is called zdmhost and the user is called zdmuser.
  2. My source database is a CDB called SALES (DB_NAME), and the host is named srchost.
  3. I want to migrate to a VM DB System, and it is already created. I name it tgthost. I use the same name for the database, SALES. I must use ASM as storage management software.

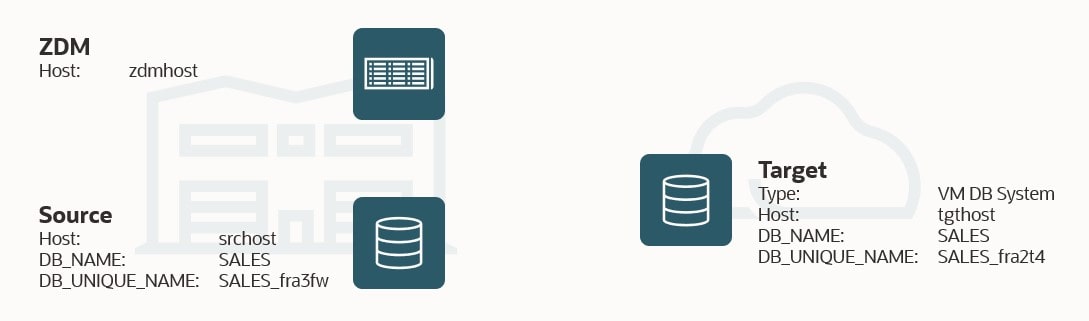

Overview of the components in this demo

Prepare Source

Ensure the database is in ARCHIVELOG mode:

select log_mode from v$database;

If database version is 12.2 or higher, a TDE keystore must be present – even if the database is not encrypted. A license is not needed to create a TDE keystore – not until data is getting encrypted. The keystore must be OPEN and the type is either AUTOLOGIN, LOCAL_AUTOLOGIN or PASSWORD. In a CDB, this applies to CDB$ROOT and all PDBs:

SELECT con_id, status, wallet_type FROM v$encryption_wallet;

If status is OPEN_NO_MASTER_KEY it means that no TDE master encryption key has been created and I will need to create one. Instructions are also in the documentation.

Ensure that the source host can resolve the network name of the target host. It is important to add two entries – one with the host name and one with the SCAN name (they should both point to the target host):

[root@srchost]$ echo -e "[ip address] tgthost" >> /etc/hosts
[root@srchost]$ echo -e "[ip address] tgthost-scan" >> /etc/hosts

Test connection over SQL*NET to the target:

[oracle@srchost]$ sqlplus system@tgthost-scan/[target-cdb-service-name]

Prepare Target

I need a target placeholder database. The placeholder target database is overwritten during migration, but it retains the overall configuration.

  • VM DB System: When I create a new system, a database is automatically created. This database is my target placeholder database.
  • Bare Metal and Exadata DB Systems: Create a new database on an existing system.

In any case:

  • DB_NAME must match that of the source database, and DB_UNIQUE_NAME must be different.
  • Use the same SYS password as the source database.
  • Do not enable automatic backup (until after the migration has completed).
  • The architecture (single instance or RAC) of the target placeholder database determine the architecture of the OCI database. If I want my OCI database to be a RAC database, simply create the target placeholder database as a RAC database, and the end result will be a RAC database.
  • COMPATIBLE must match that of the source database.
  • The patch level of the target database must be equal to or higher than the source database. If they differ, ZDM will automatically execute datapatch as part of the migration. Use $ORACLE_HOME/OPatch/opatch lsinventory.
  • The source and target database must use the same time zone file version. If they don’t match, I must upgrade the time zone file in the source database. If I have a lot of data of type TIMESTAMP WITH TIMEZONE and I can’t afford the downtime it takes to do the upgrade, then consider using the logical online method: select * from v$timezone_file;

There are a few other requirements listed in the document, but these are the most important ones.

Like the source host, the target host must be able to resolve the network name of its counterpart:

[root@tgthost]$ echo -e "[ip address] srchost" >> /etc/hosts
[root@tgthost]$ echo -e "[ip address] srchost-scan" >> /etc/hosts

And I test the connection:

[oracle@tgthost]$ sqlplus system@srchost-scan/[source-cdb-service-name]

Prepare ZDM

The ZDM service host must be able to resolve the host names of the source and target database host:

[root@zdmhost]$ echo "<source IP address> srchost" >> /etc/hosts
[root@zdmhost]$ echo "<target IP address> tgthost" >> /etc/hosts

I put my private SSH keys to the source and target database host into ~/.ssh directory. Ensure permissions are set properly:

[zdmuser@zdmhost]$ cp srchost_key_file ~/.ssh
[zdmuser@zdmhost]$ chmod 400 ~/.ssh/srchost_key_file
[zdmuser@zdmhost]$ cp tgthost_key_file ~/.ssh
[zdmuser@zdmhost]$ chmod 400 ~/.ssh/tgthost_key_file

Test the connection. I connect as opc, but you might have a different user. Read more about access to the database host in the documentation:

[zdmuser@zdmhost]$ ssh -i ~/.ssh/srchost_key_file opc@srchost date
[zdmuser@zdmhost]$ ssh -i ~/.ssh/tgthost_key_file opc@tgthost date

Prepare Response File

I will use a template response file as the basis for my response file:

[zdmuser@zdmhost]$ cp $ZDM_HOME/rhp/zdm/template/zdm_template.rsp ~/physical_online.rsp
[zdmuser@zdmhost]$ chmod 700 ~/physical_online.rsp

This is the response file that I end up with (see appendix B for an explanation):

TGT_DB_UNIQUE_NAME=SALES_fra2t4
MIGRATION_METHOD=ONLINE_PHYSICAL
DATA_TRANSFER_MEDIUM=OSS
PLATFORM_TYPE=VMDB
HOST=https://swiftobjectstorage.[region].oraclecloud.com/v1/[my-tenancy-object-storage-namespace]
OPC_CONTAINER=zdm-staging
SKIP_FALLBACK=TRUE
SHUTDOWN_SRC=TRUE

Perform Evaluation

I am now ready to perform a migration evaluation. It is a dry run of the migration and performs various sanity checks. Nothing is changed during the evaluation:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli migrate database \
   -rsp /home/zdmuser/physical_online.rsp \
   -sourcenode srchost \
   -sourcedb SALES_fra3fw \
   -srcauth zdmauth \
   -srcarg1 user:opc \
   -srcarg2 identity_file:/home/zdmuser/.ssh/srchost_key_file \
   -srcarg3 sudo_location:/usr/bin/sudo \
   -targetnode tgthost \
   -tgtauth zdmauth \
   -tgtarg1 user:opc \
   -tgtarg2 identity_file:/home/zdmuser/.ssh/tgthost_key_file \
   -tgtarg3 sudo_location:/usr/bin/sudo \
   -targethome /u01/app/oracle/product/12.1.0.2/dbhome_1 \
   -backupuser "daniel.overby.hansen@oracle.com" \
   -eval

A few comments:

  • sourcenode and targetnode are the host names of the source and target database host. Those names must be resolvable which I why I put them into /etc/hosts already.
  • sourcedb is the DB_UNIQUE_NAME of the source database. My database is on ASM. If I didn’t use ASM I should use sourcesid instead and specify the database SID.
  • srcarg1 is the name of the user that I connect as to the source database host. You might need to change that.
  • srcarg2 and tgtarg2 is the location of the private key file that I use to connect via SSH.

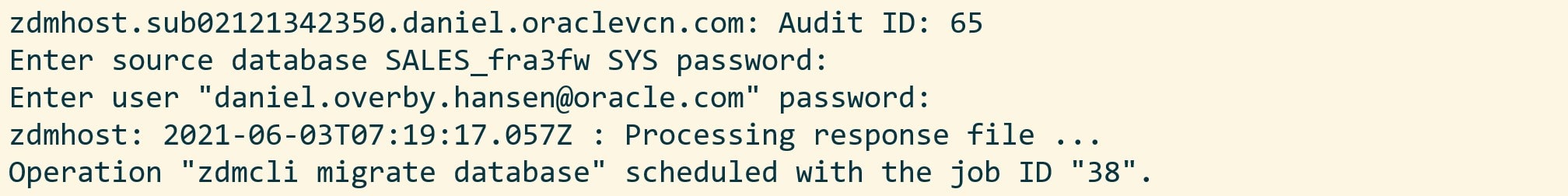

I am prompted for the SYS password to the source database and also the password for the backupuser (which is my OCI user). For the latter, please note that this password is not my user password, however, it is an auth token. I also get a job ID: When using OCI oject storage this is NOT your user password, but an auth token

The migration evaluation is then started, and I can use the job ID to monitor it:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli query job -jobid <job ID>

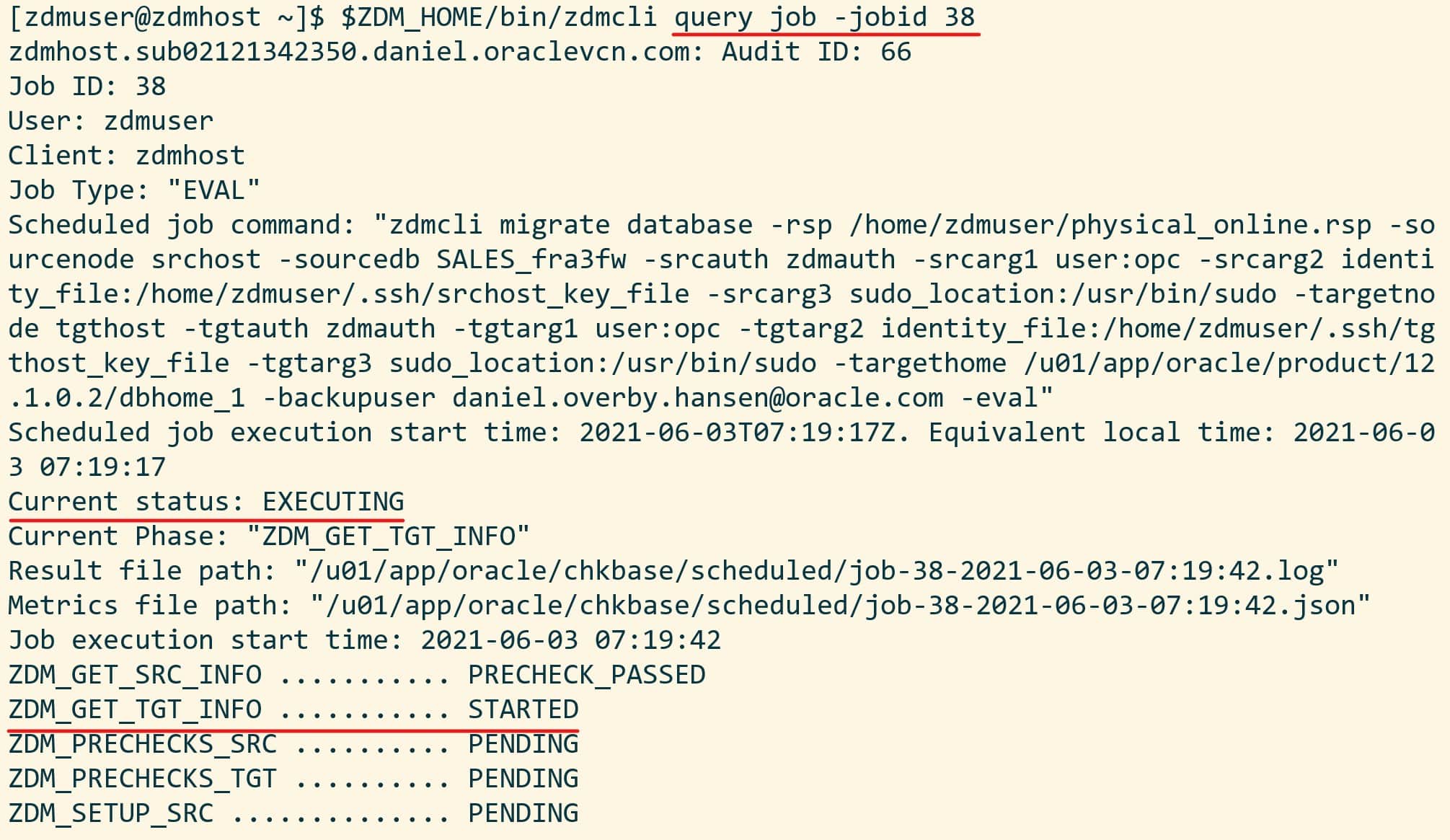

Output from zdmcli query job command

My colleague Sinan Petrus Toma showed how to loop:

[zdmuser@zdmhost]$ while :; do $ZDM_HOME/bin/zdmcli query job -jobid <job ID>; sleep 10; done

However, I prefer to get more details, so I tail the ZDM log file instead. This little one-liner finds the newest file and tails it:

[zdmuser@zdmhost]$ tail -n 50 -f "`ls -td /u01/app/oracle/chkbase/scheduled/*log | head -1`"

And I get this level of detail:

zdmhost: 2021-06-03T07:19:50.317Z : Starting zero downtime migrate operation ...
zdmhost: 2021-06-03T07:19:53.445Z : Executing phase ZDM_GET_SRC_INFO
zdmhost: 2021-06-03T07:19:53.446Z : Retrieving information from source node "srchost" ...
zdmhost: 2021-06-03T07:19:53.447Z : retrieving information about database "SALES_fra3fw" ...
zdmhost: 2021-06-03T07:20:02.743Z : Execution of phase ZDM_GET_SRC_INFO completed
zdmhost: 2021-06-03T07:20:02.826Z : Executing phase ZDM_GET_TGT_INFO
zdmhost: 2021-06-03T07:20:02.827Z : Retrieving information from target node "tgthost" ...
zdmhost: 2021-06-03T07:20:12.197Z : Determined value for parameter TGT_DATADG is '+DATA'
zdmhost: 2021-06-03T07:20:12.198Z : Determined value for parameter TGT_REDODG is '+RECO'
zdmhost: 2021-06-03T07:20:12.198Z : Determined value for parameter TGT_RECODG is '+RECO'
zdmhost: 2021-06-03T07:20:12.203Z : Execution of phase ZDM_GET_TGT_INFO completed

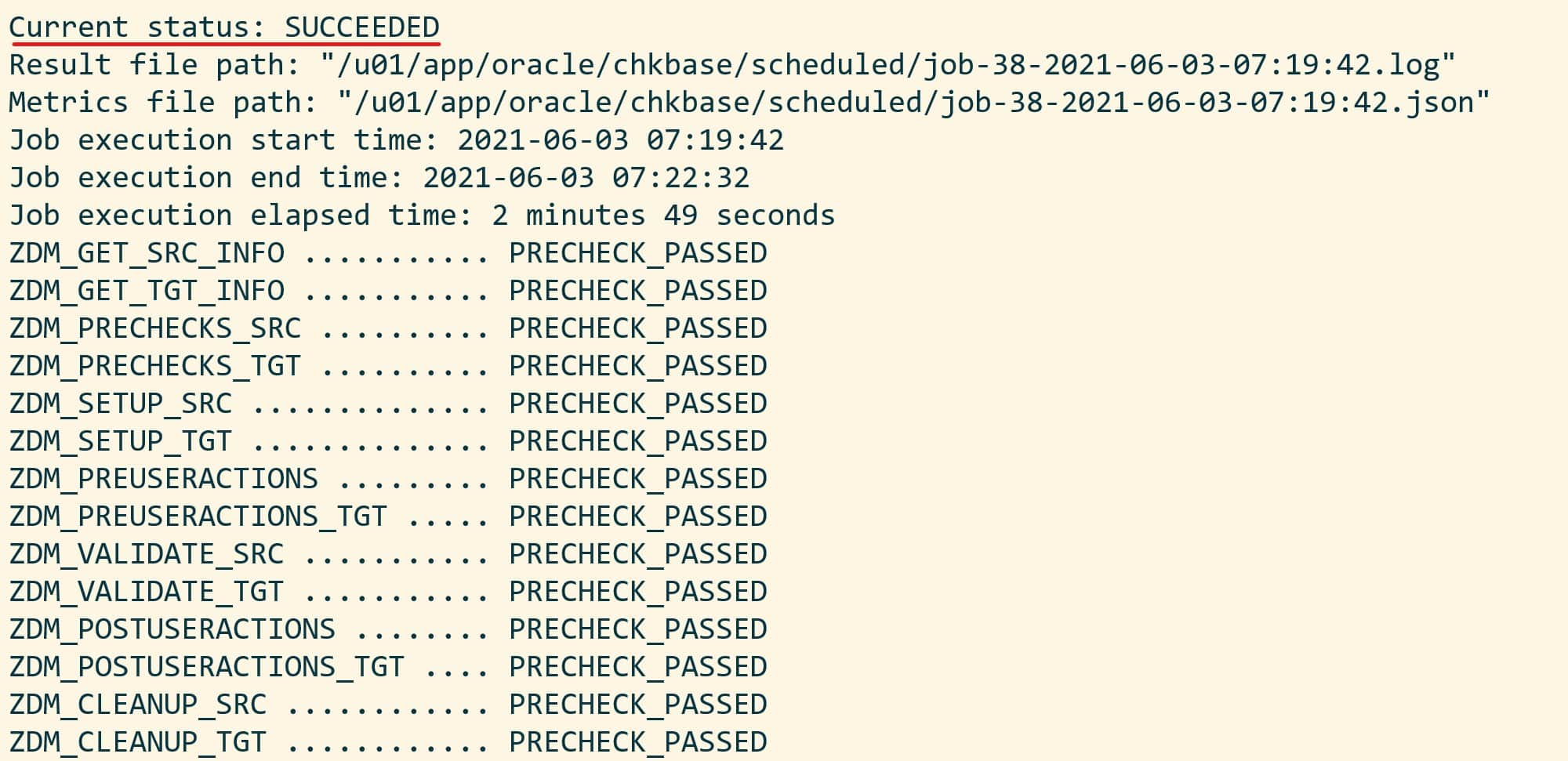

Eventually, I end up with a successful evaluation: When status of an evaluation is SUCCEEDED

Start Migration

When the evaluation passes, I can start the real migration. I am re-using the same command line, but I have removed the -eval option. Instead – and this is important – I am using -pauseafter to tell ZDM to pause the migration, just before the switchover takes place. Downtime has not started yet. The database is still open for business, but ZDM will copy the data and configure Data Guard:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli migrate database \
   -rsp /home/zdmuser/physical_online.rsp \
   -sourcenode srchost \
   -sourcedb SALES_fra3fw \
   -srcauth zdmauth \
   -srcarg1 user:opc \
   -srcarg2 identity_file:/home/zdmuser/.ssh/srchost_key_file \
   -srcarg3 sudo_location:/usr/bin/sudo \
   -targetnode tgthost \
   -tgtauth zdmauth \
   -tgtarg1 user:opc \
   -tgtarg2 identity_file:/home/zdmuser/.ssh/tgthost_key_file \
   -tgtarg3 sudo_location:/usr/bin/sudo \
   -targethome /u01/app/oracle/product/12.1.0.2/dbhome_1 \
   -backupuser "daniel.overby.hansen@oracle.com" \
   -pauseafter ZDM_CONFIGURE_DG_SRC

Again, I have to input the passwords as in eval mode. Use the job ID to monitor the progress or tail the log file. Note down the job ID. I need it later on to resume the migration.

When ZDM completes the phase ZDM_CONFIGURE_DG_SRC it will pause and wait. I can verify it with zdmcli query job: ZDM is currently paused

Now the standby database has been built in OCI. Redo gets transferred from my source database to the target database in OCI and is applied (see appendix D for monitoring queries). Also, this is a good time to test your new database.

Complete Migration

Now it is time to finalize the migration and switch over to the OCI target database. All I need to do, is to resume the paused ZDM job. I use the job ID that was created when I started the migration:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli resume job -jobid <job ID>

ZDM will now ensure that all redo is sent and applied before switching over to the OCI target database. Again, I use the zdmcli query job command to monitor the progress and I can tail the log file. After a short while the migration completes. ZDM migration completed

That’s it. I have now migrated into OCI!

I have a few post-migration tasks to carry out:

  • Configure automatic backup
  • Protect my new OCI database with a Data Guard in OCI
  • Take a peek at the alert log (just be sure)

Other Blog Posts in This Series

Appendix

A – RAC Databases

If your source or target database is a RAC database, then you only need access to one of the nodes. Select the node that you want to use and use the host name and SSH keys to that host. Also, ensure that the IP address you are using is not the floating one (VIP). In OCI that is referred to as the private IP.

B – Response File

Allow me to put some comments on the values:

Setting Comment
DATA_TRANSFER_MEDIUM When migrating to a DB System in OCI OSS is the only option. It is also the default value, so I could omit the parameter. The other options are applicable for Exadata Cloud at Customer and Exadata on-prem.
                                                                                                                                                                     HOST                                                                                                                                                                      Getting the right URL for the HOST parameter might be a little tricky, but check the documentation. In my demo I use the Frankfurt data center, and, thus, the region is set to eu-frankfurt-1. Visit the API documentation for a list of regions. Use OCI CLI and oci os ns get to find the tenancy object storage namespace. Alternatively, in the OCI Console (the web page) open the Profile menu and click Tenancy: <your tenancy name>. The namespace string is listed under Object Storage Settings. To read more about have a look at the OCI documentation. Thanks to Bartlomiej Sowa for putting in a comment with this information – much appreciated!
OPC_CONTAINER The OCI Object Storage bucket that will be used as a staging area for the backup of the source database. I recommend using a separate bucket for each migration. It makes it a lot easier to clean up afterwards.
PLATFORM_TYPE VMDB covers Virtual Machine and Bare Metal DB Services. It is also the default value, so I could omit the parameter.
SHUTDOWN_SRC I choose to shut down the source database to ensure no one uses it unintentionally after the migration.
SKIP_FALLBACK To make my demo simple I choose not to configure fallback. Remember falling back to the source database requires a license for Advanced Security Option.
TGT_DB_UNIQUE_NAME The DB_UNIQUE_NAME of the target placeholder database. It must be different than that of the source database.

C – Backup Strategy

During a migration with ZDM, you should keep your regular backup strategy. Keep doing the same backups as you did before. But avoid having ZDM backups and regular backups run at the same time. Also, if you are dealing with a RAC database be sure to put the snapshot control file on shared storage. Otherwise, you might get ORA-00245 errors during backups.

D – Monitoring

Use these queries to monitor the redo apply. On source/primary database:

SELECT
   host_name, instance_name, db_unique_name, status, database_role, open_mode
FROM
   v$database, v$instance;
SELECT thread#, max(sequence#) FROM v$archived_log GROUP BY thread#;

Target/standby database:

SELECT
   host_name, instance_name, db_unique_name, status, database_role, open_mode
FROM
   v$database, v$instance;
SELECT thread#, max(sequence#) FROM v$archived_log WHERE applied='YES' GROUP BY thread#;
--MRP process should be 'APPLYING_LOG'
SELECT process, status, sequence# FROM v$managed_standby;
SELECT * FROM v$archive_gap;

E – Troubleshooting

PRCZ-4001

If you run into this error:

PRCZ-4001 : failed to execute command "/bin/uname" using the privileged execution plugin "zdmauth" on nodes "doverbyh-zdm-tgt" within 120 seconds
PRCZ-2006 : Unable to establish SSH connection to node "doverbyh-zdm-tgt" to execute command "/bin/uname"
No more authentication methods available

Check your key files. They must be in RSA/PEM format (the private key must start with -----BEGIN RSA PRIVATE KEY-----).

ZDM_OBC_INSTALL_CREDENTIALS_INVALID

If you run into this error:

srchost: 07:08:00.000: Validating object store credentials..
srchost: <ERR_FILE><Facility>PRGO</Facility><ID>ZDM_OBC_INSTALL_CREDENTIALS_INVALID</ID></ERR_FILE>

Check your credentials to OCI. Remember when prompted for the password of your OCI account it is an auth token, not your password (even though the prompt text is misleading).

ZDM_GET_SRC_INFO

If the phase ends in PRECHECK_FAILED and there is no real clue about the error, ensure that the source database host is added to the known_hosts file on the ZDM service host. Also, you can verify connectivity by trying to log on via SSH:

[zdmuser@zdm]$ ssh -i <specified-key-file> opc@<name-of-source-host>

ZDM_GET_TGT_INFO

If the phase ends in PRECHECK_FAILED and there is no real clue about the error, ensure that the target database host is added to the known_hosts file on the ZDM service host.

[zdmuser@zdm]$ ssh -i <specified-key-file> opc@<name-of-target-host>

Zero Downtime Migration – Physical Online Migration

You can migrate a database with Zero Downtime Migration (ZDM) using the Physical Online method. A standby database is built in OCI and kept in sync via redo apply. At your will, a switchover is all it takes to complete the migration. This way even very large databases can be migrated with no or very little downtime.

Concept of physical online migration

With the Physical Online method, you can target:

  • Virtual Machine DB System
  • Bare Metal DB System
  • Exadata DB System (ExaCS)
  • Exadata Cloud at Customer (ExaCC)
  • Exadata (on-prem)

Since the method uses Data Guard as the migration vehicle, this can only be only with Enterprise Edition databases.

Benefits

  • Personally, I like this approach because it builds on technology that most of us know already. Data Guard is heavily in use in most organizations. Although ZDM does all the heavy lifting, it is nice to know what happens underneath the hood.

  • To complete the migration all you need is a regular Data Guard switchover (which ZDM also takes care of). A switchover operation ensures that there will be no data loss at all. In addition, if you have a properly configured application, it won’t experience downtime. Just a brown-out while the switchover takes place.

  • This method has an excellent fallback possibility. When you switch over to the OCI database, the redo flow is reversed. Now, the on-prem database is a standby database, and it is kept in sync via redo from the OCI database. However, this option requires a license for Advanced Security Option on your on-prem system. Read more about it later on.

  • You migrate the entire database. All the internals are brought to the cloud as well. This includes:

    • AWR
    • SQL Plan Baseline
    • SQL Profiles
    • Public objects
    • Etc.
  • The initial backup of the source, on-prem database will use RMAN Compression. It will drastically reduce the size of the backup, and thus the amount of data that you must transport to the cloud. And the really good thing: ZDM can use RMAN Compression even if you don’t have a license for the Advanced Compression Option. You are allowed to use RMAN Compression with ZDM for migration purposes without paying license for Advanced Compression Option.

  • You can customize the RMAN backup. You know your system best, so it is possible to tweak the number of RMAN channels used and the compression algorithm applied. Default is 10 and medium.

  • When ZDM takes the full backup of your source database (Exadata on-prem and ExaCC excluded), it uses Oracle Database Cloud Backup Module for OCI to allocate a special sbt channel. The backup is sent directly to OCI Object Storage. Thus, you don’t need any additional disk space on your source system to hold the backup. The same applies on the target system.

  • When migrating to ExaCC or Exadata on-prem you can use an existing backup. Use the response file option DATA_TRANSFER_MEDIUM=EXTBACKUP. Also, if you have a Zero Data Loss Recovery Appliance (ZDLRA) you can restore directly from it, without taking a full backup first. If you are migrating to any other platform, ZDM will need to take a full backup as part of the workflow.

  • The standby database is kept in sync via redo apply. This means that there are no restrictions in supported data types. Further, DDL in any form is supported and even with a heavy workload on the primary database, your standby database should be able to keep up.

  • You can migrate to a higher patch level. ZDM will automatically invoke datapatch for you on the OCI database. But you must handle the on-prem database yourself. After switching over to the OCI database and datapatch has been executed, you should patch the on-prem Oracle Home to the same patch level.

Considerations

  • You can migrate to the same version only. This is a restriction of Data Guard. If you also need to upgrade the database, then you must do that after the migration. But it will incur additional downtime.
  • The same applies to PDB conversion. ZDM can run the noncdb_to_pdb.sql script for you. But that will incur downtime as well. If you decide to convert to PDB, you need to develop an alternate fallback plan (which is Data Pump or Transportable Tablespaces). The PDB conversion is irreversible, and your on-prem database will be useless as a fallback option.
  • It is not possible to migrate between editions.
  • The entire database is migrated. I listed this as a benefit as well, but it has a flipside as well. It is not possible to perform any transformation during the migration, e.g. converting any old BasicFile LOBs to SecureFile LOBs. Also, you bring over any old baggage in your database. Sometimes it is nice to start from scratch because garbage tends to accumulate in a database over time.
  • If you have a Standard Edition database, you can’t use Physical Online method. Only the Physical Offline is supported.
  • You can’t configure Automatic backup on your target database until after the migration has been completed.
  • If you need to protect your OCI database with Data Guard, then you must build the standby database after the migration has been completed. Normally, you would use a cascading standby database to keep the target database protected by Data Guard even after the migration has been completed. But currently the OCI tooling does not support that option.

Fallback

Using this approach, you have a great fallback option. When you switch over to the OCI database, then the redo flow is reversed and the source, on-prem database is now the standby database. If you need to fallback, simply issue another switchover (you could call that a switchback) and start to use the on-prem database again – with no data loss. See step 5 in MAA Practices for Cloud Migration Using ZDM (Doc ID 2562063.1).

There is a catch, however. The OCI database is encrypted using TDE Tablespace Encryption. Any redo generated for an encrypted tablespace is also encrypted. This means that the on-prem database must be able to decrypt the redo before it can be applied. That requires a license for the Advanced Security Option. This means that the fallback is only usable, if your on-prem database has the proper license.

Conclusion

Using the Physical Online method in ZDM is a straight-forward way of migrating your database to OCI. It uses Data Guard which is very familiar to most of us. The method does, however, have some limitations, and you can’t target Autonomous Databases.

Want to Know More

If you want to know more about migrations in general, I suggest that you take a look at our webinar Migration Strategies – Insights, Tips and Secrets

In addition, these links contain additional useful information:

Other Blog Posts in This Series

Zero Downtime Migration – Logical Online Migration to DBCS

Let me show you how you can migrate an Oracle Database into OCI. My source database is a PDB running on 12.1.0.2. I want to migrate it directly into a 19c CDB. I will show you:

  • import via dump file and object storage
  • import via database link

This procedure can be used to migrate to:

  • VM DB Systems
  • Bare Metal DB Systems
  • Exadata DB System (ExaCS)

Prerequisites

  1. I need a ZDM service host. I already blogged about how to create such. The computer is called zdmhost and the user is called zdmuser.
  2. My source database is a PDB called srcpdb, the CDB is called srccdb, and the host is named srchost. All my data is in the schema SH.
  3. I have already created a GoldenGate hub as described in this blog post. It is called ogg19cora.
  4. I want to migrate to a VM DB System, and it is already created. I name it tgthost, the CDB is named tgtcdb and the PDB is named tgtpdb. You can name it whatever you want. Be sure to use ASM as your storage management software.

Overview of the components in this demo

Prepare Source

My source database is a PDB. I need to prepare the PDB and CDB$ROOT. If you have a non-CDB perform all the steps in your non-CDB unless otherwise written.

First, I prepare the database for GoldenGate replication:

alter session set container=CDB$ROOT;
alter database force logging;
alter database add supplemental log data;
alter system set enable_goldengate_replication=true scope=both;
--At least 2GB
alter system set streams_pool_size=2g scope=both;
alter system set global_names=false;

Create a common user for GoldenGate in CDB$ROOT. Skip this step for non-CDBs:

alter session set container=CDB$ROOT;
create user c##ggadmin identified by <my_secret_pwd> default tablespace users temporary tablespace temp;
grant connect, resource to c##ggadmin;
grant unlimited tablespace to c##ggadmin;
grant select any dictionary to c##ggadmin;
grant create view to c##ggadmin;
grant execute on dbms_lock to c##ggadmin;
exec dbms_goldengate_auth.grant_admin_privilege('c##ggadmin',container=>' all');

Create a user for GoldenGate:

alter session set container=SRCPDB;
create user ggadmin identified by <my_secret_pwd> default tablespace users temporary tablespace temp;
grant connect, resource to ggadmin;
grant unlimited tablespace to ggadmin;
grant select any dictionary to ggadmin;
grant create view to ggadmin;
grant execute on dbms_lock to ggadmin;
exec dbms_goldengate_auth.grant_admin_privilege('ggadmin');

Generate a list of tablespaces that must exist in the target database. Add all schemas to the in-list:

alter session set container=SRCPDB;
select distinct tablespace_name
from (
      select distinct tablespace_name from dba_segments where owner in ('SH')
      union
      select distinct default_tablespace from dba_users where username in ('SH')
      union
      select distinct tablespace_name from dba_ts_quotas where dropped = 'NO' and username in ('SH')
      );

Optional. The best starting point for Data Pump is good and accurate dictionary statistics. This helps Data Pump extract the information as fast as possible:

exec dbms_stats.gather_dictionary_stats;

Via Dump File

I need to create a directory that can be used by Data Pump:

[oracle@srchost]$ mkdir -p /u01/app/oracle/datapump/mydirsrc

Prepare Target

The target database must use a timezone file version that is equal to or higher than the source:

alter session set container=tgtpdb;
select * from v$timezone_file;

Prepare the database for GoldenGate replication:

alter session set container=CDB$ROOT;
alter system set enable_goldengate_replication=true scope=both;

Create a user for GoldenGate:

alter session set container=tgtpdb;
create user ggadmin identified by <my_secret_pwd> default tablespace users temporary tablespace temp;
grant connect, resource to ggadmin;
grant unlimited tablespace to ggadmin;
grant select any dictionary to ggadmin;
grant create view to ggadmin;
grant execute on dbms_lock to ggadmin;
exec dbms_goldengate_auth.grant_admin_privilege('ggadmin');

Allow the GoldenGate user to perform DML (see appendix A):

alter session set container=tgtpdb;
grant insert any table to ggadmin;
grant update any table to ggadmin;
grant delete any table to ggadmin;

I ensure that the list of tablespaces I found in the source database, exist in the target database. If some are missing, I create them. Also, I will extend the data files in advance, so the size is pretty close to the expected end size. For new tablespaces I set the initial size of the data files. If the data files are too small, I will waste a lot of time during import to auto-extend. If I make them too big, I potentially waste space:

alter database datafile '...' resize 100G;
create tablespace ... size 100G ...;

Via Dump File

I need to create a directory that can be used by Data Pump. It will hold the Data Pump dump files and logs:

[oracle@tgthost]$ mkdir -p /u01/app/oracle/datapump/mydirtgt

Via DB Link

When I use a DB link, ZDM insists on using the built-in directory called DATA_PUMP_DIR. I ensure that the database directory exist. Also, I verify that the directory exist in the file system:

select directory_path from dba_directories where directory_name='DATA_PUMP_DIR';

I will do the import directly over a database link. In that case, the target host must be able to resolve the host name of my source database host:

[root@tgthost]$ echo "<source IP address> srchost" >> /etc/hosts

Prepare ZDM

The ZDM service host must be able to resolve the host names of the source and target database host and the GoldenGate hub:

[root@zdmhost]$ echo "<source IP address> srchost" >> /etc/hosts
[root@zdmhost]$ echo "<target IP address> tgthost" >> /etc/hosts
[root@zdmhost]$ echo "<GoldenGate IP address> ogg19cora" >> /etc/hosts

I put my private SSH keys to the source and target database host into ~/.ssh directory. Ensure permissions are set properly:

[zdmuser@zdmhost]$ cp srchost_key_file ~/.ssh
[zdmuser@zdmhost]$ chmod 400 ~/.ssh/srchost_key_file
[zdmuser@zdmhost]$ cp tgthost_key_file ~/.ssh
[zdmuser@zdmhost]$ chmod 400 ~/.ssh/tgthost_key_file

Test the connection. I connect as opc, but you might have a different user. Read more about access to the database host in the documentation:

[zdmuser@zdmhost]$ ssh -i ~/.ssh/srchost_key_file opc@srchost date
[zdmuser@zdmhost]$ ssh -i ~/.ssh/tgthost_key_file opc@tgthost date

If you have configured a proper certificate on your GoldenGate hub, you can jump to the next chapter. If not, read on.

When deployed the GoldenGate hub comes with a self-signed certificate. ZDM will complain about it, because it is considered insecure. For migrations that involve real data, you should use a proper certificate on your GoldenGate hub to ensure your migration is secure. But for tests and demos you might want to disregard the security warning. If so, you can add the self-signed certificate as a trusted one to the Java JDK’s certificate store ($ZDM_HOME/jdk/jre/lib/security/cacerts). You find instructions on how to do so in the MOS support note Zero Downtime Migration – GoldenGate Hub Certificate Known Issues (Doc ID 2768483.1). Use the same host that you added to /etc/hosts.

For your reference, this is the error that ZDM will throw if the certificate is not trusted:

Verifying status of Oracle GoldenGate Microservices at URL "https://..."
PRGZ-1136 : failed to verify configuration and status of Oracle GoldenGate Microservices at URL "https://..."
PRGG-1008 : failed to retrieve detailed information for the health of the Service Manager on Oracle GoldenGate hub "https://..."
PRGG-1001 : HTTP GET request "https://.../services/v2/config/health" failed.
javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
unable to find valid certification path to requested target

Prepare Response File

I will use a template response file as the basis for my response file:

[zdmuser@zdmhost]$ cp $ZDM_HOME/rhp/zdm/template/zdm_logical_template.rsp ~/logical_online.rsp
[zdmuser@zdmhost]$ cmod 700 ~/logical_online.rsp

Via Dump Files

This is the response file that I end up with (see appendix E for an explanation):

MIGRATION_METHOD=ONLINE_LOGICAL
DATA_TRANSFER_MEDIUM=OSS

SOURCEDATABASE_ADMINUSERNAME=SYSTEM
SOURCEDATABASE_GGADMINUSERNAME=GGADMIN
SOURCEDATABASE_CONNECTIONDETAILS_HOST=srchost
SOURCEDATABASE_CONNECTIONDETAILS_PORT=1521
SOURCEDATABASE_CONNECTIONDETAILS_SERVICENAME=srcpdb....oraclevcn.com
SOURCECONTAINERDATABASE_ADMINUSERNAME=SYSTEM
SOURCECONTAINERDATABASE_GGADMINUSERNAME=C##GGADMIN
SOURCECONTAINERDATABASE_CONNECTIONDETAILS_HOST=srchost
SOURCECONTAINERDATABASE_CONNECTIONDETAILS_PORT=1521
SOURCECONTAINERDATABASE_CONNECTIONDETAILS_SERVICENAME=SRCCDB_fra3dd....oraclevcn.com

TARGETDATABASE_OCID=ocid1.database.oc1.eu-frankfurt-1....
TARGETDATABASE_ADMINUSERNAME=SYSTEM
TARGETDATABASE_GGADMINUSERNAME=GGADMIN
TARGETDATABASE_CONNECTIONDETAILS_HOST=tgthost
TARGETDATABASE_CONNECTIONDETAILS_PORT=1521
TARGETDATABASE_CONNECTIONDETAILS_SERVICENAME=tgtpdb....oraclevcn.com

OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_TENANTID=ocid1.tenancy.oc1....
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_USERID=ocid1.user.oc1....
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_FINGERPRINT=58:b9:...
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_PRIVATEKEYFILE=/home/zdmuser/.oci/oci_api_key.pem
OCIAUTHENTICATIONDETAILS_REGIONID=eu-frankfurt-1

GOLDENGATEHUB_ADMINUSERNAME=oggadmin
GOLDENGATEHUB_URL=https://ogg19cora....oraclevcn.com
GOLDENGATEHUB_SOURCEDEPLOYMENTNAME=Source
GOLDENGATEHUB_TARGETDEPLOYMENTNAME=Target
GOLDENGATEHUB_COMPUTEID=ocid1.instance.oc1.eu-frankfurt-1....

DATAPUMPSETTINGS_JOBMODE=SCHEMA
DATAPUMPSETTINGS_DATAPUMPPARAMETERS_IMPORTPARALLELISMDEGREE=2
DATAPUMPSETTINGS_DATAPUMPPARAMETERS_EXPORTPARALLELISMDEGREE=2
DATAPUMPSETTINGS_IMPORTDIRECTORYOBJECT_NAME=MYDIRTGT
DATAPUMPSETTINGS_IMPORTDIRECTORYOBJECT_PATH=/u01/app/oracle/datapump/mydirtgt
DATAPUMPSETTINGS_EXPORTDIRECTORYOBJECT_NAME=MYDIRSRC
DATAPUMPSETTINGS_EXPORTDIRECTORYOBJECT_PATH=/u01/app/oracle/datapump/mydirsrc
DATAPUMPSETTINGS_DATABUCKET_BUCKETNAME=zdm-staging
DATAPUMPSETTINGS_DATABUCKET_NAMESPACENAME=oradbclouducm
INCLUDEOBJECTS-1=owner:SH

Via DB Link

This is the response file that I end up with (see appendix E for an explanation):

MIGRATION_METHOD=ONLINE_LOGICAL
DATA_TRANSFER_MEDIUM=DBLINK

SOURCEDATABASE_ADMINUSERNAME=SYSTEM
SOURCEDATABASE_GGADMINUSERNAME=GGADMIN
SOURCEDATABASE_CONNECTIONDETAILS_HOST=srchost
SOURCEDATABASE_CONNECTIONDETAILS_PORT=1521
SOURCEDATABASE_CONNECTIONDETAILS_SERVICENAME=srcpdb....oraclevcn.com
SOURCECONTAINERDATABASE_ADMINUSERNAME=SYSTEM
SOURCECONTAINERDATABASE_GGADMINUSERNAME=C##GGADMIN
SOURCECONTAINERDATABASE_CONNECTIONDETAILS_HOST=srchost
SOURCECONTAINERDATABASE_CONNECTIONDETAILS_PORT=1521
SOURCECONTAINERDATABASE_CONNECTIONDETAILS_SERVICENAME=SRCCDB_fra3dd....oraclevcn.com

TARGETDATABASE_OCID=ocid1.database.oc1.eu-frankfurt-1....
TARGETDATABASE_ADMINUSERNAME=SYSTEM
TARGETDATABASE_GGADMINUSERNAME=GGADMIN
TARGETDATABASE_CONNECTIONDETAILS_HOST=tgthost
TARGETDATABASE_CONNECTIONDETAILS_PORT=1521
TARGETDATABASE_CONNECTIONDETAILS_SERVICENAME=tgtpdb....oraclevcn.com

OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_TENANTID=ocid1.tenancy.oc1....
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_USERID=ocid1.user.oc1....
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_FINGERPRINT=58:b9:...
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_PRIVATEKEYFILE=/home/zdmuser/.oci/oci_api_key.pem
OCIAUTHENTICATIONDETAILS_REGIONID=eu-frankfurt-1

GOLDENGATEHUB_ADMINUSERNAME=oggadmin
GOLDENGATEHUB_URL=https://ogg19cora....oraclevcn.com
GOLDENGATEHUB_SOURCEDEPLOYMENTNAME=Source
GOLDENGATEHUB_TARGETDEPLOYMENTNAME=Target
GOLDENGATEHUB_COMPUTEID=ocid1.instance.oc1.eu-frankfurt-1....

DATAPUMPSETTINGS_JOBMODE=SCHEMA
DATAPUMPSETTINGS_DATAPUMPPARAMETERS_IMPORTPARALLELISMDEGREE=2
INCLUDEOBJECTS-1=owner:SH

Perform Evaluation

I am now ready to perform a migration evaluation. It is a dry run of the migration and performs various sanity checks. Nothing is changed during the evaluation:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli migrate database \
   -rsp /home/zdmuser/logical_online.rsp \
   -sourcenode srchost \
   -sourcedb SRCCDB_fra3dd \
   -srcauth zdmauth \
   -srcarg1 user:opc \
   -srcarg2 identity_file:/home/zdmuser/.ssh/srchost_key_file \
   -srcarg3 sudo_location:/usr/bin/sudo \
   -targetnode tgthost \
   -tgtauth zdmauth \
   -tgtarg1 user:opc \
   -tgtarg2 identity_file:/home/zdmuser/.ssh/tgthost_key_file \
   -tgtarg3 sudo_location:/usr/bin/sudo \
   -eval

A few comments:

  • sourcenode and targetnode are the host names of the source and target database host. Those names must be resolvable which I why I put them into /etc/hosts already.
  • sourcedb is the DB_UNIQUE_NAME of the source database.
  • srcarg1 is the name of the user that I connect as to the source database host. You might need to change that.
  • srcarg2 and tgtarg2 is the location of the private key file that I use to connect via SSH.

Next, I am prompted for various passwords and I also get a job ID. When submitting a migration job you are prompted for various passwords

The migration evaluation is then started, and I can use the job ID to monitor it:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli query job -jobid <job ID>

Output from zdmcli query job command

My colleague Sinan Petrus Toma showed how to loop:

[zdmuser@zdmhost]$ while :; do $ZDM_HOME/bin/zdmcli query job -jobid <job ID>; sleep 10; done

However, I prefer to get more details, so I tail the ZDM log file instead. This little one-liner finds the newest file and tails it:

[zdmuser@zdmhost]$ tail -n 50 -f "`ls -td /u01/app/oracle/chkbase/scheduled/*log | head -1`"

And I get this level of detail:

zdmhost: 2021-05-28T06:25:25.518Z : Executing phase ZDM_PRE_MIGRATION_ADVISOR
zdmhost: 2021-05-28T06:25:31.883Z : Source PDB name : SRCPDB
zdmhost: 2021-05-28T06:25:32.410Z : Running CPAT (Cloud Premigration Advisor Tool) on the source node srchost ...
zdmhost: 2021-05-28T06:25:38.533Z : Premigration advisor output:
Cloud Premigration Advisor Tool Version 21.0.0
Cloud Premigration Advisor Tool completed with overall result: WARNING
Cloud Premigration Advisor Tool generated report location: /u01/app/oracle/zdm/zdm_SRCCDB_fra3dd_6/out/premigration_advisor_report.json

Start Migration

When the evaluation passes, I can start the real migration. I am re-using the same command line, but I have removed the -eval option. Instead – and this is important – I am using -pauseafter to tell ZDM to pause the migration, just before the switchover takes place. Downtime has not started yet. The database is still open for business, but ZDM will copy the data and start the GoldenGate replication:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli migrate database \
   -rsp /home/zdmuser/logical_online.rsp \
   -sourcenode srchost \
   -sourcedb SRCCDB_fra3dd \
   -srcauth zdmauth \
   -srcarg1 user:opc \
   -srcarg2 identity_file:/home/zdmuser/.ssh/srchost_key_file \
   -srcarg3 sudo_location:/usr/bin/sudo \
   -targetnode tgthost \
   -tgtauth zdmauth \
   -tgtarg1 user:opc \
   -tgtarg2 identity_file:/home/zdmuser/.ssh/tgthost_key_file \
   -tgtarg3 sudo_location:/usr/bin/sudo \
   -pauseafter ZDM_MONITOR_GG_LAG

Again, I have to input the passwords as in eval mode. Use the job ID to monitor the progress or tail the log file. Note down the job ID. I need it later on to resume the migration.

When ZDM completes the phase ZDM_MONITOR_GG_LAG it will pause and wait. I can verify it with zdmcli query job: ZDM is currently paused

My data has been imported to the target database in OCI, GoldenGate has been configured, and my changes are being replicated. I can monitor the replication by logging on to the GoldenGate hub.

Complete Migration

Now it is time to finalize the migration and switch over to the OCI target database. All I need to do, is to resume the paused ZDM job. I use the job ID that was created when I started the migration:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli resume job -jobid <job ID>

ZDM will now ensure that all changes are replicated before switching over to the OCI target database. Again, I use the zdmcli query job command to monitor the progress and I can tail the log file. After a short while the migration completes. ZDM migration completed

That’s it. I have now migrated into OCI! And my new database is running Oracle Database 19c in addition.

I have a few post-migration tasks to carry out:

  • I prefer to shut down the source database to ensure that use it anymore.
  • ZDM will remove the GoldenGate configuration, but I need to disable the replication in the database: alter system set enable_goldengate_replication=false scope=both;.

Finally, I would recommend that you take a look at Logical Migration and the Final Touches. A few pointers that can make your migration even more successful.

Other Blog Posts in This Series

Appendix

A – GoldenGate user privileges

When GoldenGate is replicating changes into the target database, it does so as a regular database user. Thus, it must have privileges to perform DML and DDL on the appropriate schemas. There is a number of ways to do that.

I granted INSERT ANY, UPDATE ANY, and DELETE ANY which will allow me to perform DML in any schema. But that does not cover DDL. If I want to cover that as well there is a number of similar ANY privileges that I would need to grant, like CREATE ANY TABLE, CREATE ANY INDEX and so forth.

But it is discouraged to perform DDL statements during the replication. Plus, the way ZDM configures the extract and replicat process does not allow DDLs to be replicated. If you want to replicate DDL you need to tweak the GoldenGate settings:

During the migration period, to provide the most optimal environment for fast database replication, avoid the following database operations:

  • Data Definition Language (DDL) – While DDL is replicated, the Replicat serializes data to ensure that there are no locking issues between DML and DDL on the same objects.
  • Large batch DML – Running large batch operations, like a single transaction that affects multi-millions of rows, can slow down replication rates.

Other customers prefer an easier solution and grant PDB_DBA role (or DBA in a non-CDB). Connor McDonald also blogged about a procedure to perform schema grant. If you need inspiration you can have a look at the GGADMIN user in an Autonomous Database. It has PDB_DBA role amongst others.

In the end it comes down to preferences and security regulations in your organization.

B – Update Cloud Premigration Advisor Tool

As part of the migration ZDM will use the Cloud Premigration Advisor Tool (CPAT) to check your source database. The version of CPAT that ships with ZDM is not the latest one. So, you might be missing out on bug fixes and new recommendations. If you want to get the latest and greatest recommendations, I suggest that you manually update the CPAT tool in your ZDM home. You can find instructions in the MOS note Cloud Premigration Advisor Tool (CPAT) Analyzes Databases for Suitability of Cloud Migration (Doc ID 2758371.1)

C – Ignore Certain Data Pump Errors

If there is an error in either your Data Pump export or import, then ZDM will error out. But by default, ZDM will ignore the following errors:

  • ORA-31684: Object type string already exists
  • ORA-39111: Dependent object type string skipped, base object type string already exists
  • ORA-39082 Object type string created with compilation warnings

If you know that your data exports or imports with a specific error and you want to ignore it then you can add your own errors. The list of ignorable errors is maintained by the ZDM service host and it applies to all migrations. So, if you add another error for one migration, that error is also ignored in a second migration. Read more about it in the documentation.

D – RAC Databases

If your source or target database is a RAC database, then you only need access to one of the nodes. Select the node that you want to use and use the host name and SSH keys to that host.

E – Response File

Allow me to put some comments on the values:

Setting Comment
DATAPUMPSETTINGS_DATABUCKET_BUCKETNAME Name of the bucket in OCI Object Storage that will be used as a staging area. I recommend using a separate and dedicated bucket for each migration
DATAPUMPSETTINGS_DATABUCKET_NAMESPACENAME This is your Object Storage Namespace. You find it in the OCI Console, Administration > Tenancy Details
DATAPUMPSETTINGS_DATAPUMPPARAMETERS_EXPORTPARALLELISMDEGREE For on-prem databases set to number of physical cores x 2. For OCI databases set to number of OCPUs. Standard Edition does not allow parallel, so set to 1
DATAPUMPSETTINGS_DATAPUMPPARAMETERS_IMPORTPARALLELISMDEGREE Set to the number of OCPUs. Standard Edition does not allow parallel, so set to 1
DATAPUMPSETTINGS_JOBMODE I recommend using SCHEMA. Each schema to import is specified in a separate parameter, INCLUDEOBJECTS-n
GOLDENGATEHUB_ADMINUSERNAME Remember the usernames in GoldenGate are case sensitive
GOLDENGATEHUB_SOURCEDEPLOYMENTNAME The name of the source deployment in GoldenGate hub. If you went with the default value, it should be Source
GOLDENGATEHUB_TARGETDEPLOYMENTNAME The name of the target deployment in GoldenGate hub. If you went with the default value, it should be Target
GOLDENGATEHUB_URL Construct the URL by using the Fully Qualified Domain Name (FQDN), e.g. https://ogg19cora.subx.oraclevcn.com
INCLUDEOBJECTS-n Specify each schema in a separate parameter, example: INCLUDEOBJECTS-1=owner:SH and INCLUDEOBJECTS-2=owner:OE
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_FINGERPRINT This is the fingerprint of the API keys that you used to configure OCI CLI on the ZDM service host. You can find the fingerprint in the OCI Console. Go to Identify > Users > User Details > API Keys
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_PRIVATEKEYFILE This is the private key file that you used when you configured OCI CLI on the ZDM service host
SOURCECONTAINERDATABASE_CONNECTIONDETAILS_SERVICENAME This is a service that connects directly into CDB$ROOT. I normally use lsnrctl status to find the name of the service
SOURCECONTAINERDATABASE_CONNECTIONDETAILS_SERVICENAME This is a service that connects directly into CDB$ROOT. I normally use lsnrctl status to find the name of the service
SOURCECONTAINERDATABASE_ The settings apply to my source CDB. If you have a non-CDB simply remove these settings
SOURCEDATABASE_CONNECTIONDETAILS_SERVICENAME This is a service that connects directly into the source PDB (or non-CDB). I normally use lsnrctl status to find the name of the service
SOURCEDATABASE_ These settings apply to my source PDB. Or, to your non-CDB
TARGETDATABASE_CONNECTIONDETAILS_SERVICENAME This is a service that connects directly into the target PDB. I normally use lsnrctl status to find the name of the service

Zero Downtime Migration – Logical Offline Migration to Autonomous Database

Let me show you how you can migrate an Oracle Database into an Autonomous Database. My source database is a PDB running on 12.1.0.2. I want to migrate it directly into an Oracle Autonomous Transaction Processing (ATP) database. I will do an offline migration using just Oracle Data Pump.

Prerequisites

  1. I need a Zero Downtime Migration (ZDM) service host. I already blogged about how to create such. The computer is called zdmhost and the user is called zdmuser.
  2. My source database is a PDB called srcpdb, the CDB is called srccdb, and the host is named srchost. All my data is in the schema SH.
  3. I have created an ATP database. I name it tgtadb.

Overview of the components in this demo

Prepare Source

My source database is a PDB. If you have a non-CDB perform all the steps in your non-CDB.

First, set streams pool to a reasonable size (needed by Data Pump):

alter session set container=CDB$ROOT;
--At least 256M
alter system set streams_pool_size=256M scope=both;

Generate a list of tablespaces. In ADB there is only one tablespace named DATA (unless you have more than 32 TB of data, then you get DATA_2, DATA_3 and so forth). All tablespaces must be re-mapped to that. Add all schemas to the in-list:

alter session set container=SRCPDB;
select distinct tablespace_name
from (
      select distinct tablespace_name from dba_segments where owner in ('SH')
      union
      select distinct default_tablespace from dba_users where username in ('SH')
      union
      select distinct tablespace_name from dba_ts_quotas where dropped = 'NO' and username in ('SH')
      );

I need to create a directory that can be used by Data Pump:

[oracle@srchost]$ mkdir -p /u01/app/oracle/datapump/mydirsrc

Optional. The best starting point for Data Pump is good and accurate dictionary statistics. This helps Data Pump extract the information as fast as possible:

exec dbms_stats.gather_dictionary_stats;

Prepare ZDM

The ZDM service host must be able to resolve the host name of the source database host:

[root@zdmhost]$ echo "<source IP address> srchost" >> /etc/hosts

I put my private SSH key to the source database host into ~/.ssh directory. Ensure permissions are set properly:

[zdmuser@zdmhost]$ cp srchost_key_file ~/.ssh
[zdmuser@zdmhost]$ chmod 400 ~/.ssh/srchost_key_file

Test the connection. I connect as opc, but you might have a different user. Read more about access to the database host in the documentation:

[zdmuser@zdmhost]$ ssh -i ~/.ssh/srchost_key_file opc@srchost date

Prepare Response File

I will use a template response file as the basis for my response file:

[zdmuser@zdmhost]$ cp $ZDM_HOME/rhp/zdm/template/zdm_logical_template.rsp ~/logical_offline.rsp
[zdmuser@zdmhost]$ chmod 700 ~/logical_offline.rsp

This is the response file that I end up with (see appendix D for an explanation):

MIGRATION_METHOD=OFFLINE_LOGICAL
DATA_TRANSFER_MEDIUM=OSS

SOURCEDATABASE_ADMINUSERNAME=SYSTEM
SOURCEDATABASE_CONNECTIONDETAILS_HOST=srchost
SOURCEDATABASE_CONNECTIONDETAILS_PORT=1521
SOURCEDATABASE_CONNECTIONDETAILS_SERVICENAME=srcpdb....com

TARGETDATABASE_OCID=ocid1.autonomousdatabase.oc1.eu-frankfurt-1....
TARGETDATABASE_ADMINUSERNAME=ADMIN

OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_TENANTID=ocid1.tenancy.oc1....
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_USERID=ocid1.user.oc1....
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_FINGERPRINT=58:b9:...
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_PRIVATEKEYFILE=/home/zdmuser/.oci/oci_api_key.pem
OCIAUTHENTICATIONDETAILS_REGIONID=eu-frankfurt-1

DATAPUMPSETTINGS_JOBMODE=SCHEMA
DATAPUMPSETTINGS_DATAPUMPPARAMETERS_IMPORTPARALLELISMDEGREE=2
DATAPUMPSETTINGS_DATAPUMPPARAMETERS_EXPORTPARALLELISMDEGREE=2
DATAPUMPSETTINGS_DATABUCKET_NAMESPACENAME=oradbclouducm
DATAPUMPSETTINGS_DATABUCKET_BUCKETNAME=zdm-staging
DATAPUMPSETTINGS_EXPORTDIRECTORYOBJECT_NAME=MYDIRSRC
DATAPUMPSETTINGS_EXPORTDIRECTORYOBJECT_PATH=/u01/app/oracle/datapump/mydirsrc
DATAPUMPSETTINGS_CREATEAUTHTOKEN=FALSE
DATAPUMPSETTINGS_METADATAREMAPS-1=type:REMAP_SCHEMA,oldValue:SH,newValue:SH2
DATAPUMPSETTINGS_METADATAREMAPS-2=type:REMAP_TABLESPACE,oldValue:USERS,newValue:DATA
DATAPUMPSETTINGS_METADATAREMAPS-3=type:REMAP_TABLESPACE,oldValue:TEST,newValue:DATA
INCLUDEOBJECTS-1=owner:SH

A few comments:

  • I am remapping SH to SH2 because SH already exist in ADB as a common user. I want to import into a new user.
  • Check the appendix for recommendations on setting parallel degree. Remember scaling up on CPUs in ADB happens fast and online. If you have a lot of data, you can really benefit from scaling up during import.
  • The list of tablespaces that I created earlier is used to generate the list of tablespace remaps.

Perform Evaluation

I am now ready to perform a migration evaluation. It is a dry run of the migration and performs various sanity checks. Nothing is changed during the evaluation:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli migrate database \
   -rsp /home/zdmuser/logical_offline.rsp \
   -sourcenode srchost \
   -sourcedb SRCCDB_fra3dd \
   -srcauth zdmauth \
   -srcarg1 user:opc \
   -srcarg2 identity_file:/home/zdmuser/.ssh/srchost_key_file \
   -srcarg3 sudo_location:/usr/bin/sudo \
   -eval

A few comments:

  • sourcenode is the host name of the source database host. The name must be resolvable which I why I put it into /etc/hosts already.
  • sourcedb is the DB_UNIQUE_NAME of the source database.
  • srcarg1 is the name of the user that I connect as to the source database host. You might need to change that.
  • srcarg2 is the location of the private key file that I use to connect via SSH.

Next, I am prompted for passwords and my auth token. It also prompts for an encryption password. This is used to encrypt and decrypt the Data Pump dump file. Generate a secure password. I also get a job ID. When submitting a migration job you are prompted for various passwords

The migration evaluation is then started, and I can use the job ID to monitor it:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli query job -jobid <job ID>

Output from zdmcli query job command

However, I prefer to get more details, so I tail the ZDM log file instead. This little one-liner finds the newest file and tails it:

[zdmuser@zdmhost]$ tail -n 50 -f "`ls -td /u01/app/oracle/chkbase/scheduled/*log | head -1`"

And I get this level of detail:

zdmhost: 2021-05-28T06:25:25.518Z : Executing phase ZDM_PRE_MIGRATION_ADVISOR
zdmhost: 2021-05-28T06:25:31.883Z : Source PDB name : SRCPDB
zdmhost: 2021-05-28T06:25:32.410Z : Running CPAT (Cloud Premigration Advisor Tool) on the source node srchost ...
zdmhost: 2021-05-28T06:25:38.533Z : Premigration advisor output:
Cloud Premigration Advisor Tool Version 21.0.0
Cloud Premigration Advisor Tool completed with overall result: WARNING
Cloud Premigration Advisor Tool generated report location: /u01/app/oracle/zdm/zdm_SRCCDB_fra3dd_6/out/premigration_advisor_report.json

Start Migration

When the evaluation passes, I can start the real migration. This is an offline migration, so I need to drain the database before I start. Kick off the users and ensure that they don’t reconnect.

I am re-using the same command line, but I have removed the -eval option:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli migrate database \
   -rsp /home/zdmuser/logical_offline.rsp \
   -sourcenode srchost \
   -sourcedb SRCCDB_fra3dd \
   -srcauth zdmauth \
   -srcarg1 user:opc \
   -srcarg2 identity_file:/home/zdmuser/.ssh/srchost_key_file \
   -srcarg3 sudo_location:/usr/bin/sudo

Again, I have to input the passwords as in eval mode. Use the job ID to monitor the progress or tail the log file.

When the migration completes, status changes to succeeded

That’s it. I have now migrated into an Autonomous Database in OCI!

I have a few post-migration tasks to carry out:

  • I prefer to shut down the source database to ensure that use it anymore.
  • Figure out what to do with the Data Pump dump and log files that are stored in my object storage bucket.

I showed the simple, offline method. However, if you want to use the online method without downtime, have a look at my colleague Sinan’s blog post.

Other Blog Posts in This Series

Appendix

A – Update Cloud Premigration Advisor Tool

As part of the migration ZDM will use the Cloud Premigration Advisor Tool (CPAT) to check your source database. The version of CPAT that ships with ZDM is not the latest one. So, you might be missing out on bug fixes and new recommendations. If you want to get the latest and greatest recommendations, I suggest that you manually update the CPAT tool in your ZDM home. You can find instructions in the MOS note Cloud Premigration Advisor Tool (CPAT) Analyzes Databases for Suitability of Cloud Migration (Doc ID 2758371.1)

B – Ignore Certain Data Pump Errors

If there is an error in either your Data Pump export or import, then ZDM will error out. But by default, ZDM will ignore the following errors:

  • ORA-31684: Object type string already exists
  • ORA-39111: Dependent object type string skipped, base object type string already exists
  • ORA-39082 Object type string created with compilation warnings

If you know that your data exports or imports with a specific error and you want to ignore it then you can add your own errors. The list of ignorable errors is maintained by the ZDM service host and it applies to all migrations. So, if you add another error for one migration, that error is also ignored in a second migration. Read more about it in the documentation.

C – RAC Databases

If your source database is a RAC database, then you only need access to one of the nodes. Select the node that you want to use and use the host name and SSH key to that host.

D – Response File

Allow me to put some comments on the values:

Setting Comment
DATAPUMPSETTINGS_CREATEAUTHTOKEN I set this to false to re-use an existing auth token. I will be prompted to import the auto token when the migration starts
DATAPUMPSETTINGS_DATABUCKET_BUCKETNAME Name of the bucket in OCI Object Storage that will be used as a staging area. I recommend using a separate and dedicated bucket for each migration
DATAPUMPSETTINGS_DATABUCKET_NAMESPACENAME This is your Object Storage Namespace. You find it in the OCI Console, Administration > Tenancy Details
DATAPUMPSETTINGS_DATAPUMPPARAMETERS_EXPORTPARALLELISMDEGREE For on-prem databases set to number of physical cores x 2. For OCI databases set to number of OCPUs. Standard Edition does not allow parallel, so set to 1
DATAPUMPSETTINGS_DATAPUMPPARAMETERS_IMPORTPARALLELISMDEGREE Set to the number of OCPUs
DATAPUMPSETTINGS_JOBMODE I recommend using SCHEMA. Each schema to import is specified in a separate parameter, INCLUDEOBJECTS-n
DATAPUMPSETTINGS_METADATAREMAPS-n You should remap any tablespace into DATA which is the only that exist in ADB. If you have a lot of data you will have DATA_2, DATA_3 and so forth. In addition, I am remapping SH into SH2. SH is already created as a common user in ADB, and I want to import into an empty schema. If you need to specify multiple remaps, increment the number and specify only one remap per parameter
INCLUDEOBJECTS-n Specify each schema in a separate parameter, example: INCLUDEOBJECTS-1=owner:SH and INCLUDEOBJECTS-2=owner:OE
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_FINGERPRINT This is the fingerprint of the API keys that you used to configure OCI CLI on the ZDM service host. You can find the fingerprint in the OCI Console. Go to Identify > Users > User Details > API Keys
OCIAUTHENTICATIONDETAILS_USERPRINCIPAL_PRIVATEKEYFILE This is the private key file that you used when you configured OCI CLI on the ZDM service host
SOURCEDATABASE_CONNECTIONDETAILS_SERVICENAME This is a service that connects directly into the source PDB (or non-CDB). I normally use lsnrctl status to find the name of the service
SOURCEDATABASE_ These settings apply to my source PDB. Or, to your non-CDB

E – Data Pump Logfile

Check out my Pro Tips for information on how to retrieve the Data Pump log file.

Zero Downtime Migration – Monitor GoldenGate Replication

When you are migrating your Oracle Database with Zero Downtime Migration (ZDM) and the Logical Online method, you are using Oracle GoldenGate to handle the replication. The replication keeps the OCI target database in sync until you can perform the switchover. Thus, it is a vital part of the process. Let’s see how you can monitor the replication.

I have already started a migration which is currently paused at the phase ZDM_MONITOR_GG_LAG.

Monitor Services

Log on to the Oracle GoldenGate Hub via HTTPS. Use the host name, private or public IP address or whatever your network allows.

You are prompted for credentials. Log on as oggadmin – in lowercase. The password you can find in the file ogg-credentials.json which you find on GoldenGate Hub. The log in prompt of Oracle GoldenGate

Once logged in you can ensure that all the services are up and running. Most important are the Administration Server services – on source and target. They are handling the replication. Ensure all services are running You can start and stop the services from the Action drop-down menu.

By clicking on the Port number of each of the services, you can go to the specific console for each of the services. Again, the Administration Server are the ones of interest. Click on the port number to go to the specific console

Monitor Extract

If you followed the link to the Source Administration Server (by clicking on the port number) you end up here: Administration Server overview

Ensure that the extract is running. Further down the page you see a list of events. From the Action drop-down menu, you can start and stop the extract. And you get into the Details as well: Follow the Details link

You can get a lot of details, like extract statistics. Here you can see that extract has caught one insert into the table locations: Extract statistics

Monitor Replicat

Now you have monitored the extract, and you should also monitor the replication, which is handled by the replicat process. Basically, you do the same as with extract but use the link on the target administration server: Follow the link to the target administration server to monitor the replicat process

Here you should look at the replicat process and ensure that it is running: Ensure replicat process is running

You start and stop the services and get into the details like described above.

Troubleshooting

Here is an example of an error. I have created a table in my source database that does not exist in the target. This break the replication. I can use the list of critical events to figure out what went wrong: Replicat failed

Also, if you go into the details of the replicat process, and switch to the report tab, you can find even more details:

You can also find more logs on the GoldenGate host in the directories:

  • /u02/deployments/Source/etc/conf/ogg/
  • /u02/deployments/Target/etc/conf/ogg/

Conclusion

With Oracle GoldenGate Microservices Architecture it is easy to get an overview of the replication process. There are nice graphical overviews and you can even get detailed information and statistics.

Other Blog Posts in This Series

Zero Downtime Migration – Logical Online Migration

You can migrate a database with Zero Downtime Migration (ZDM) using the Logical Online method. The migration will happen with a combination of Data Pump and Oracle GoldenGate. This way even very large databases can be migrated with very little downtime.

In the introduction blog post I covered the basic characteristics of this approach and explained that Oracle GoldenGate can be used at no extra license cost and it is really simple to use.

Migrate your Oracle Database with Zero Downtime Migration ZDM using Data Pump and GoldenGate

With the Logical Online method, you can even target Autonomous Databases. Both Oracle Autonomous Transaction Processing (ATP) and Oracle Autonomous Data Warehouse (ADW) and also shared and dedicated. When you target an Autonomous Database, you don’t have access to the underlying database host, so instead of SSH access, ZDM will require SQL*Net connectivity.

Benefits

  • First and most important, you don’t need a license for Oracle GoldenGate to use this approach. Yes, that’s right! You are allowed to use a marketplace edition of Oracle GoldenGate 19c for 183 days to migrate your database with ZDM.

Oracle GoldenGate for Oracle – Database Migrations can be used for 183 days to perform migrations into Oracle databases located in Oracle Cloud Infrastructure using the following tools: Oracle Zero Downtime Migration and Oracle Cloud Infrastructure Database Migration

  • Even if you don’t have any GoldenGate experience, you can still use this approach. For example, you don’t need to install and configure GoldenGate yourself. The marketplace image creates the GoldenGate installation for you. Afterwards, ZDM configures GoldenGate and will eventually clean up as well.
  • You can migrate directly into a higher release. For example, if your source database is 12.1.0.2, you can migrate into 19c directly. This avoids the extra downtime normally needed to perform an upgrade.
  • You can migrate directly into a PDB. For example, if you source database is a non-CDB, you can migrate directly into a PDB. This avoids the extra downtime normally needed to convert the database into a PDB using the script noncdb_to_pdb.sql.
  • You can use the full power of Data Pump and GoldenGate to transform your data. By default, ZDM will convert any old BasicFile LOBs into SecureFile LOBs during import. But you can apply other transformations as well. You can partition the table in the target database, you can change the tablespace layout, you can apply compression and anything else that is possible with Data Pump.
  • You can migrate into a different character set (Data Pump and GoldenGate restrictions apply).
  • Your Data Pump export is automatically compressed if the source database is Enterprise Edition. Normally, Data Pump compression would require a license for the Advanced Compression Option. But when you migrate with ZDM to OCI, Oracle allows you to use Data Pump compression without having the Advanced Compression Option.
  • Your Data Pump export is automatically encrypted if the source database is Enterprise Edition. Normally, Data Pump encryption would require a license for the Advanced Security Option. But when you migrate with ZDM to OCI, Oracle allows you to use Data Pump encryption without having the Advanced Security Option.
  • You get recommendations on the migration before it is actually started. ZDM includes the Cloud Premigration Advisor Tool (CPAT) which analyzes your database and give you specific recommendations that matches the target database. For example, if you target an Autonomous Database, CPAT will warn if you have unsupported objects.
  • You can migrate a SE2 database into OCI using this approach as well.
  • You can build your target database in advance and configure backup upfront as well. You can test your backup/recovery strategy before you complete the migration.
  • You can build a standby database in advance as well. Your new OCI target database can be protected by Data Guard from the very second you perform the switch-over. I would recommend doing the initial Data Pump load first, and then build the standby database. This ensures that a minimum of changes has to be applied via redo.

Considerations

  • The time zone file in the OCI target database must be higher than that in the source database. Typically, this is not a problem if you provision a brand-new DB System. But if you plan to use an existing CDB in OCI do check the time zone file upfront:
SQL> select * from v$timezone_file;
  • In My Oracle Support you can find a list of recommended patches to apply on the source database when using Oracle GoldenGate. There is one for 11g and one for 12c and newer. You don’t have to apply those patches, but it is a recommendation. However, if you run into issues, you potentially have to patch your source database.
  • Most databases can be migrated with Oracle GoldenGate. Only very exotic data types are not supported. Be sure to check the documentation.
  • When you use Data Pump to migrate you will lose a lot of the information that is stored in the data dictionary, like
    • AWR
    • SQL Plan Baselines
    • SQL Profiles
    • SQL Patches
  • You can still transfer that information, but you need to use other tools. If this is relevant to you, I suggest that you watch our webinar Performance Stability, Tips and Tricks and Underscores where it is covered in detail.
  • Depending on whether you use a full or schema mode export you need to take care of your public objects afterwards. It could be synonyms or database links.
  • For a huge database you should be prepared for the time it takes to perform the Data Pump export and import. No need to worry too much because GoldenGate will keep track of the changes. But for a 100 TB database you should not start the job the day before the switchover is supposed to take place.
  • It is not recommended to execute DDL statements when GoldenGate is replicating changes. The extract and replicat processes that are created by GoldenGate does not replicate DDL statements. If you for example add a table after the initial Data Pump load, it will not get replicated by GoldenGate. However, GoldeGate is a very powerful tool and you can configure it to replicate DDL as well. But you will need to adjust the GoldenGate user privileges and change the parameter files. In the documentation you can read more about the possibilities of DDL replication and how to configure it.

Fallback

Using this approach there is no straight forward way of falling back to the source on-prem database. You could use GoldenGate to reverse the replication when you switch over to the OCI target database. However, it is not configured automatically by ZDM. So, this is very you would need to know GoldenGate and do the required configuration.

Conclusion

You get a lot more options when you use the Logical Online method to migrate your database. Especially, the possibility of migrating directly into a higher release or into a PDB is very attractive. Plus, you can use GoldenGate during the migration at no extra license cost.

However, the flexibility comes at a cost. There is a little more configuration and it is not as straight-forward as the Physical Online method. But it is not complicated.

Want to Know More

If you want to know more about using Data Pump and GoldenGate for database migrations, I suggest that you take a look at our webinar Migration Strategies – Insights, Tips and Secrets

In addition, these links contain additional useful information:

Other Blog Posts in This Series

Zero Downtime Migration – Create GoldenGate Hub

The Logical Online migration method in Zero Downtime Migration (ZDM) uses Oracle GoldenGate to keep the Oracle Database in OCI in sync until you perform the switchover. You need an Oracle GoldenGate Hub to do that and you should use the deployment from the OCI Marketplace. Let’s do it!

  1. First, go to the OCI Marketplace and search for goldengate for oracle. You should use the image called Oracle GoldenGate for Oracle – Database Migrations. Use the OCI Marketplace to find the Oracle GoldenGate application

  2. On the application page you can verify that the software is free but you still have to pay for the underlying infrastructure, like the compute instance. In addition, certain terms apply:

Oracle GoldenGate for Oracle – Database Migrations can be used for 183 days to perform migrations into Oracle databases located in Oracle Cloud Infrastructure using the following tools: Oracle Zero Downtime Migration and Oracle Cloud Infrastructure Database Migration

  1. When you hit Get App button you need to log in to OCI. Be sure to select the right region and compartment. Again, you can verify that the software is free – but you pay for the compute instance. Hit Launch Stack. Launching an Oracle GoldenGate stack using OCI Marketplace This version of Oracle GoldenGate is available for free but you have to pay for the underlying infrastructure

  2. On the next page Create Stack – Stack Information simply give it a name. I call it OGG4DEMO.

  3. On the next page Create Stack – Configure Variables you fill in additional information like network, your SSH public key etc. But most important – you also need to specify the Oracle Database version of the source and target database – and whether the target database is an Autonomous Database. Don’t worry about the deployment names they are good as they are. Even if the target attributes are listed as optional – fill them out. Pick the right database versions for the source and target database

  4. Review the settings and hit Create. The stack is now being deployed. The stack is deploying and very soon it will be ready

  5. Now, head on over to Compute and Instances to find the newly created compute instance with Oracle GoldenGate already installed. Depending on your network settings use either the public or private IP address or the computer name (DNS). When the stack has been created, you can find it in Compute > Instances

  6. Use the IP address (or computer name) and your SSH key to connect to the server as opc. There is a file called ogg-credentials.json which contains the username and password that is needed to connect to the Oracle GoldenGate Hub In ogg-credentials.json you find the username and password required to connect to the Oracle GoldenGate Hub

  7. Now you can connect via HTTPS (https://193.122.52.34) to the Oracle GoldenGate Hub. Use the credentials from ogg-credentials.json and log in. That’s it – your very own Oracle GoldenGate deployment. The landing page when you log in to the Oracle GoldenGate Hub

Other Blog Posts in This Series

Appendix

A. The very last thing is to apply the latest patches to Oracle GoldenGate. But that will be a topic for a future post.

B. When you connect to Oracle GoldenGate via HTTPS, you will probably get a security warning in your browser. The initial deployment comes with a self-signed certificate which alerts many browsers. Follow the procedures in your organization to deploy a proper certificate. Read more about Securing the Microservices Architecture.

C. The credentials for Oracle GoldenGate are case sensitive. It applies to the password but also the username (oggadmin, not OGGADMIN).

Zero Downtime Migration – The Pro Tips

Here are my pro tips. It is a little mix and match of all my notes that didn’t make it into the previous blog posts but are still too good to go.

Pro Tip 1: Log Files

If something goes south where can you find the log files? On the ZDM service host:

  • $ZDM_BASE/chkbase/scheduled
  • $ZDM_BASE/crsdata/<hostname>/rhp

On the source and target hosts you can also find additional log files containing all the commands that are executed by ZDM:

  • $ORACLE_BASE/zdm/zdm_<db_unique_name>_<zdm_job_id>/zdm/log

Other sources:

  • Alert log
  • Data Pump process trace file DM00

Data Pump log file

  • Directory referenced by directory object
  • $ORACLE_HOME/rdbms/log/<PDB GUID>

Pro Tip 2: Troubleshooting

When you are troubleshooting it is sometimes useful to get rid of all the log files and have ZDM start all over. Some of the log files get really big and are a hard to read, so I usually stop the ZDM service, delete all the log files, and restart ZDM and my troubleshooting. But only do this if there are no other jobs running than the one you are troubleshooting:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmservice stop
[zdmuser@zdmhost]$ rm $ZDM_BASE/crsdata/*/rhp/rhpserver.log*
[zdmuser@zdmhost]$ rm $ZDM_BASE/chkbase/scheduled/*
[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmservice start

There are also several chapters on troubleshooting:

Pro Tip 3: Aborting A Job

Sometimes it is useful to completely restart a migration. If a database migration is already registered in ZDM, you are not allowed to specify another migration job. First, you have to abort the existing job, before you can enter a new migration job.

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli abort job -jobid n

Now, you can use zdmcli migrate database command again.

Pro Tip 4: Show All Phases

A ZDM migration is split into phases, and you can have ZDM pause after each of the phases. The documentation has a list of all phases but you can also get it directly from the ZDM tool itself for a specific migration job:

[zdmuser@zdmhost]$ $ZDM_HOME/bin/zdmcli migrate database \
   -rsp ~/migrate.rsp
   ... \
   ... \
   ... \
   -listphases

Pro Tip 5: Adding Custom Scripts

You can add your own custom scripts to run before or after a phase in the migration job. You can use the -listphases command (described above) to get a list of all the phases. Then decide whether your script should run before or after that phase. This is called an action plug-in. You can bundle those together in a template to make it easier to re-use. If this is something you need, you should dive into the documentation.

If you target an Autonomous Database, you are not allowed to execute scripts on the target database host. Instead, you can .sql scripts.

The environment in which the script starts has some environment variables that you can use, like:

  • Database (ZDM_SRCDB)
  • Oracle Home (ZDM_SRCDBHOME)
  • ZDM Phase (RHP_PHASE)

Pro Tip 6: GoldenGate Health Check

You can use the healthcheck script on the source and target databases – where the extract and replicat process is running. It will give you invaluable information for your troubleshooting experience and it is a good idea to run and attach a health check if you need to contact My Oracle Support. It is like an AWR report but with information specific to Oracle GoldenGate replication.

Generate report by:

  • Installing objects in database: ogghc_install.sql
  • Execute health check: ogghc_run.sql
  • Optionally, clean-up objects: ogghc_uninstall.sql

For GoldenGate MicroServices Architecture find the scripts on the GoldenGate hub:

  • /u01/app/ogg/oraclenn/lib/sql/healthcheck

And run the scripts in source and target database.

Pro Tip 7: Convert From Single Instance To RAC

A useful feature of ZDM is that it can convert a single instance database to a RAC database in OCI. And it is super simple to do that. The only thing you have to do is to create the target placeholder database as a RAC database. ZDM will detect that and take care of the rest.

Finally, let me mention that if the source database is RAC One Node or RAC, then the target database must be a RAC database. Be sure to create the target placeholder database as RAC.

Pro Tip 8: Get Data Pump Log File in Autonomous Database

When you are importing into Autonomous Database, the Data Pump log file is stored in the directory DATA_PUMP_DIR. But in Autonomous Database you don’t have access to the underlying file system, so how do you get the log file? One approach is to upload the log file into Object Storage.

  1. ZDM will create a set of credentials as part of the migration workflow. Find the name of the credentials (or create new ones using DBMS_CLOUD):
select owner, credential_name, username, enabled from dba_credentials;
  1. Find the name of the Data Pump log file:
select * from dbms_cloud.list_files('DATA_PUMP_DIR');
  1. Upload it. If you need help generating the URI, check the documentation:
begin
    DBMS_CLOUD.PUT_OBJECT (
       credential_name => '<your credential>',
       object_uri      => 'https://objectstorage.<region>.oraclecloud.com/n/<namespace>/b/<bucket>/',
       directory_name  => 'DATA_PUMP_DIR',
       file_name       => '<file name>');
end;
/
  1. Your OCI Console to download the Data Pump log file.

Other Blog Posts in This Series
